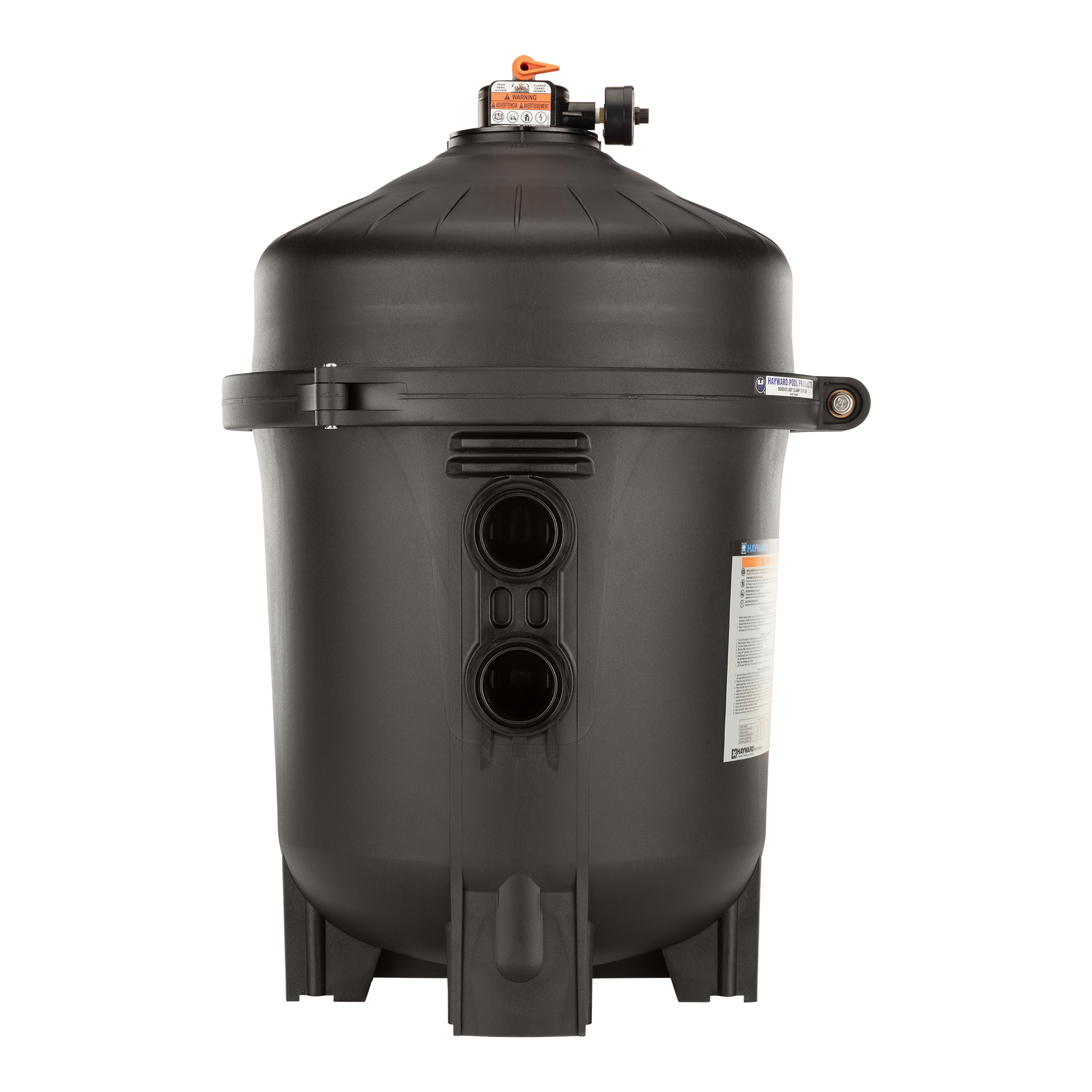

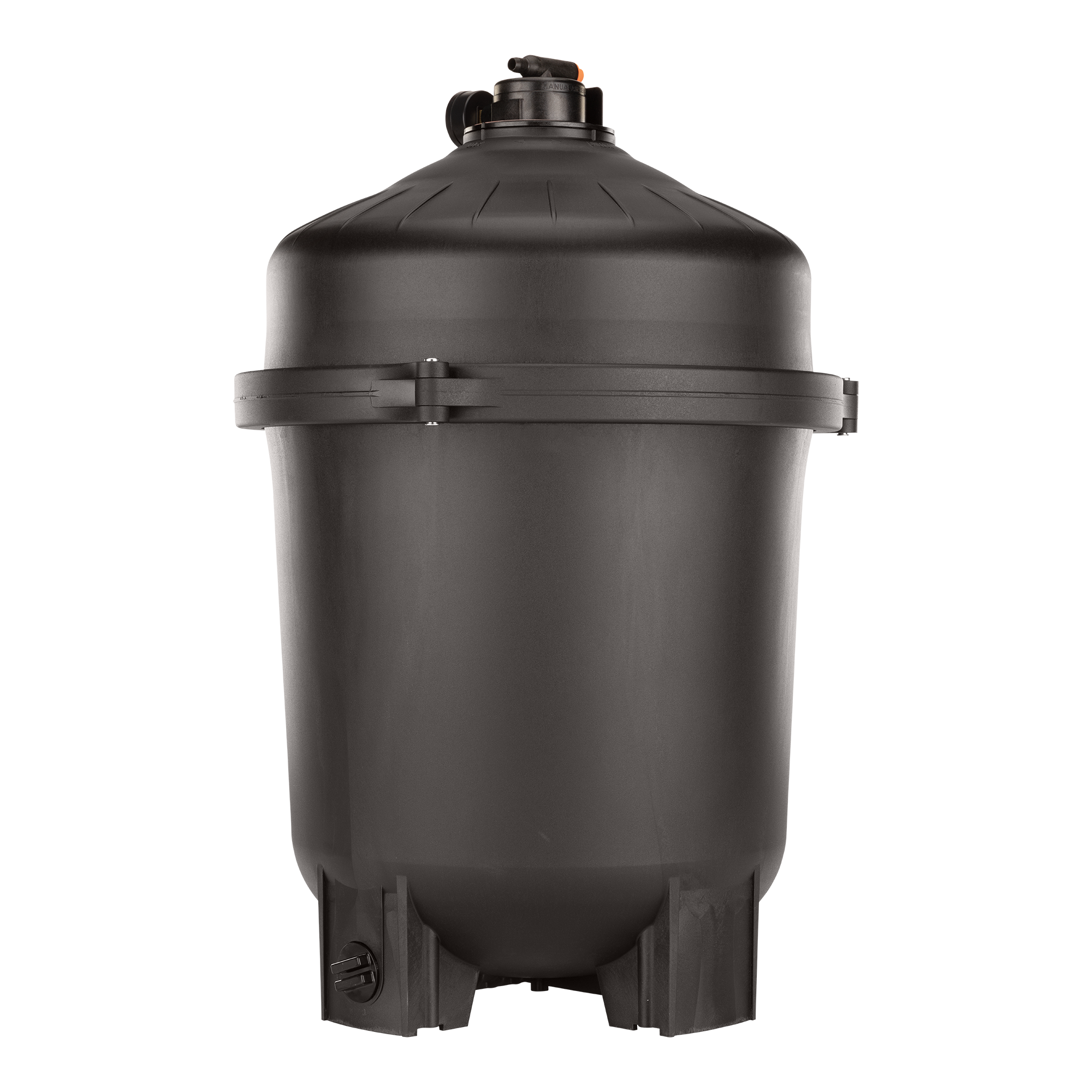

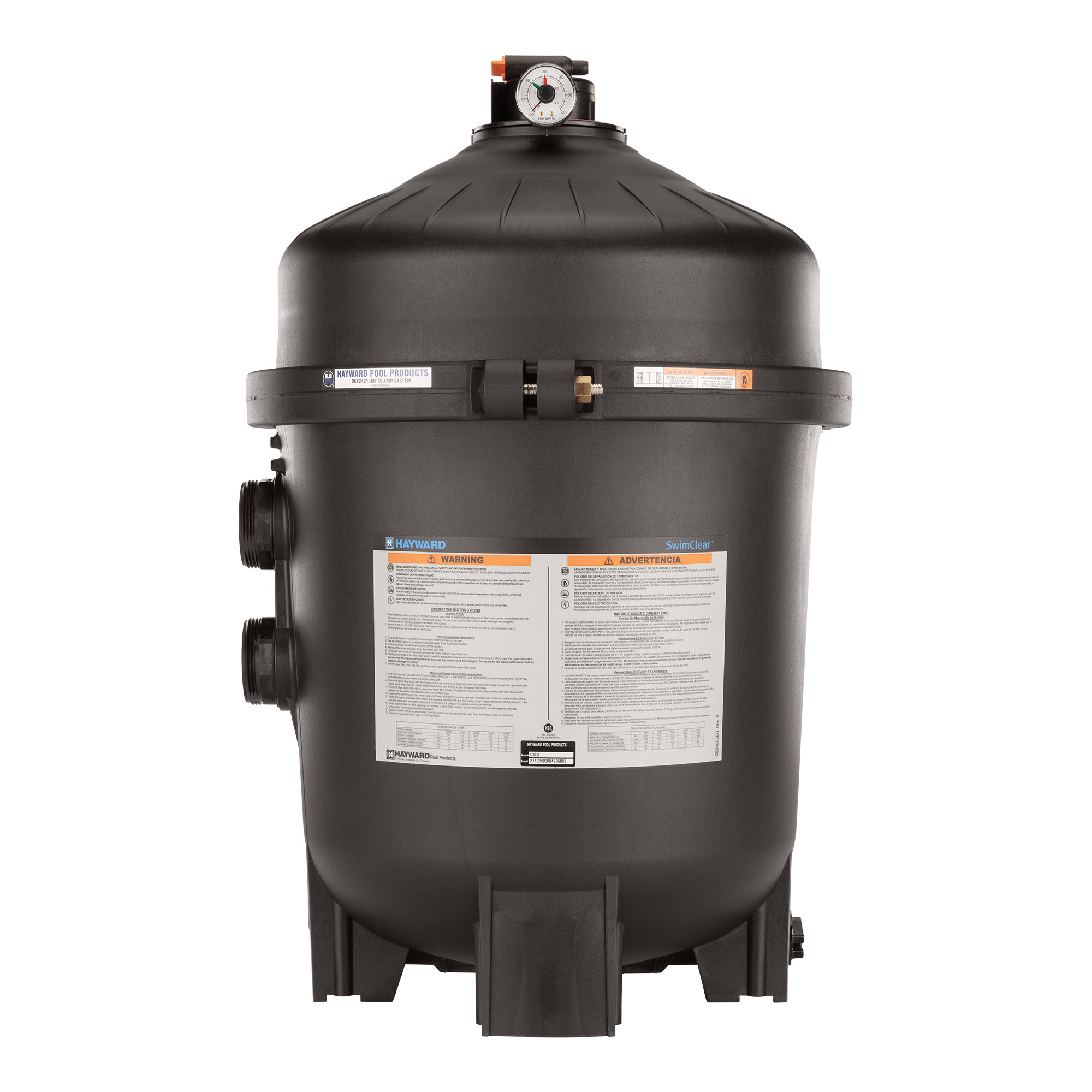

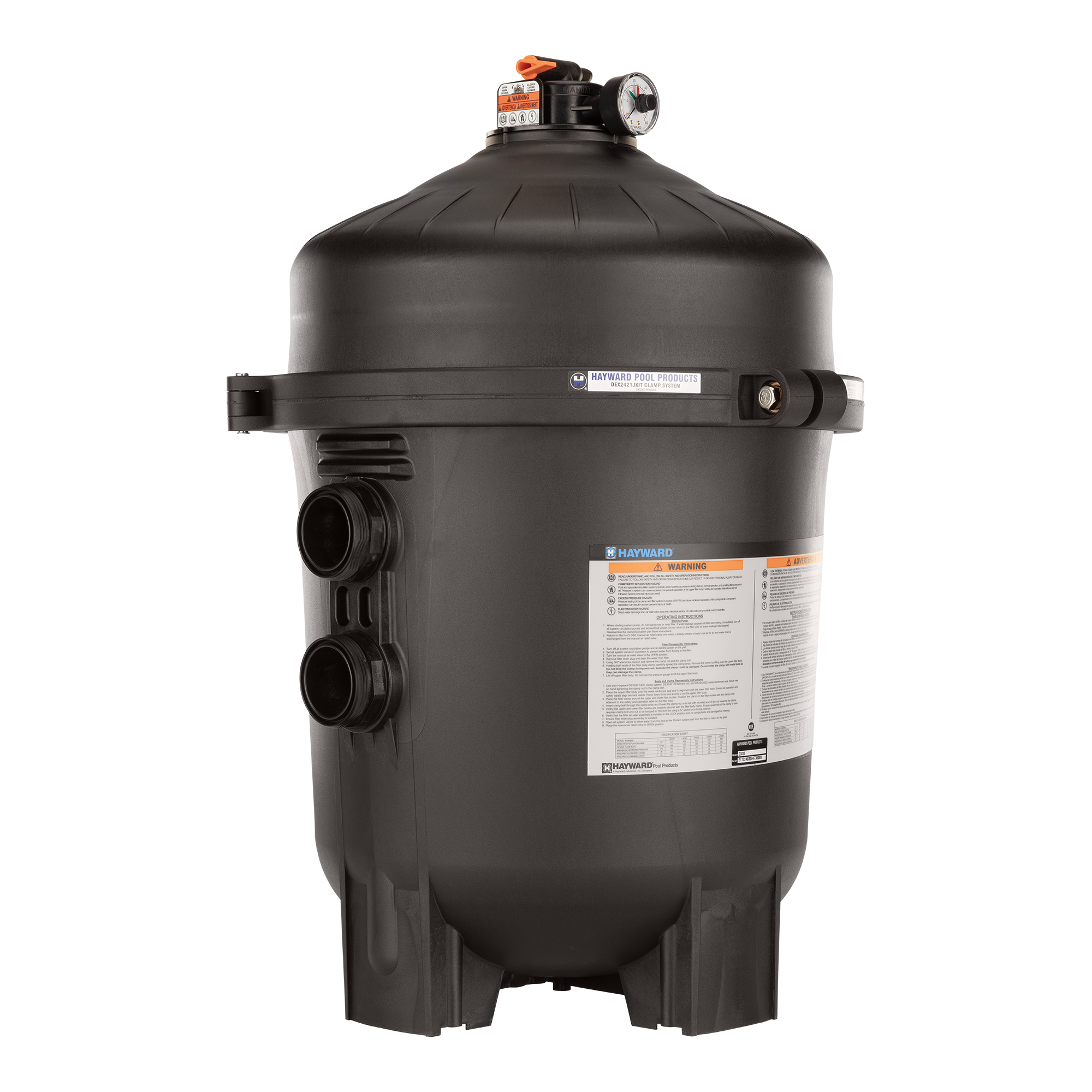

Hayward SwimClear™ 325 Sq Ft Cartridge Filter
The Hayward SwimClear™ 325 Sq Ft Cartridge Filter provides the most energy-efficient flow of any cartridge filter in its class — saving up to 2,500 gallons of water per year by eliminating backwashing. 325 sq ft of heavy-duty cartridge area with an extra-long filter cycle, top manifold configuration, and high-capacity rapid-release air relief makes the SwimClear a top choice for in-ground pools and spas.
Built with a durable injection-molded tank, one-piece tamper-proof flange clamp for quick internal access, and cleanable cartridge elements. Rated for 122 GPM at up to 50 PSI. Backed by a 1-year warranty.
Key Features
325 Sq Ft — No Backwashing
325 sq ft of heavy-duty cartridge area saves up to 2,500 gallons of water per year vs. sand or DE backwashing.
Top Manifold Configuration
Excellent filtration and hydraulic performance — the top manifold design maximizes uniform flow through the cartridge elements for reduced operating cost.
122 GPM Flow Rate
Rated for 122 GPM — sized for in-ground pools with high-flow circulation systems.
High-Capacity Rapid-Release Air Relief
Manual air relief valve bleeds air with a quick quarter-turn of the lever — fast and easy.
One-Piece Tamper-Proof Flange Clamp
Heavy-duty clamp securely fastens the tank and allows quick access to all internal components for cartridge cleaning or replacement.
Durable Injection-Molded Tank
Built from materials engineered for the toughest environmental conditions and long service life.
Energy Efficient
Most energy-efficient flow of any cartridge filter in its class — green certified.
Extra-Long Filter Cycle
Heavy-duty dirt-holding capacity extends the time between cleanings.
Who It's For
- In-ground pool and spa owners who want cartridge filtration at 122 GPM with maximum energy efficiency
- Anyone who wants to eliminate backwashing and reduce water consumption
- Pools where the SwimClear's compact 18" tank diameter fits tighter equipment pad layouts
- Hayward system users wanting brand-matched filtration to go with Hayward pumps and automation
Specifications
Performance
| Filtration Area | 325 sq ft |
| Design / Max Flow Rate | 122 GPM |
| Max Working Pressure | 50 PSI |
Tank & Plumbing
| Tank Construction | Injection-Molded |
| Tank Diameter | 18 in |
| Inlet/Outlet Spacing | 5 in center-to-center |
| Product Height | 34.5 in |
| Side Clearance Required | 18 in |
| Vertical Clearance Required | 16 in |
Physical
| Product Weight | 75 lb |
| Shipping Dimensions | 23.1 × 24.6 × 35.7 in |
Approvals & Warranty
| Energy Efficient | Yes (Green Certified) |
| Warranty | 1 Year |
What's in the Box
- Hayward SwimClear C3030 Filter Tank
- Cartridge Element(s)
- One-Piece Flange Clamp
- User Manual
Warranty
The Hayward SwimClear 325 sq ft Cartridge Filter comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How does the SwimClear compare to the Pentair Clean and Clear Plus at similar sizes?
Both are top-quality four-element cartridge filters with no-backwash cleaning. The SwimClear C3030 (325 sq ft, 122 GPM) is comparable in capacity to the Pentair CCP320 (320 sq ft, 120 GPM). The SwimClear uses a top manifold design and a single one-piece flange clamp; the Pentair uses a balanced hydraulic flow design with a separate clamp band. Both are excellent choices — brand preference and existing equipment compatibility are often the deciding factor.
How often do the cartridges need cleaning?
Clean when the pressure gauge reads 8–10 PSI above the clean starting pressure. For most residential pools this is every 2–6 months. Open the tank using the one-piece flange clamp, remove the cartridge elements, and rinse with a garden hose.
Does the SwimClear require backwashing?
No. The SwimClear is a cartridge filter — it does not have a backwash function. Cleaning is done by removing and rinsing the cartridge elements. This saves up to 2,500 gallons of water per year compared to sand or DE filter backwashing.
