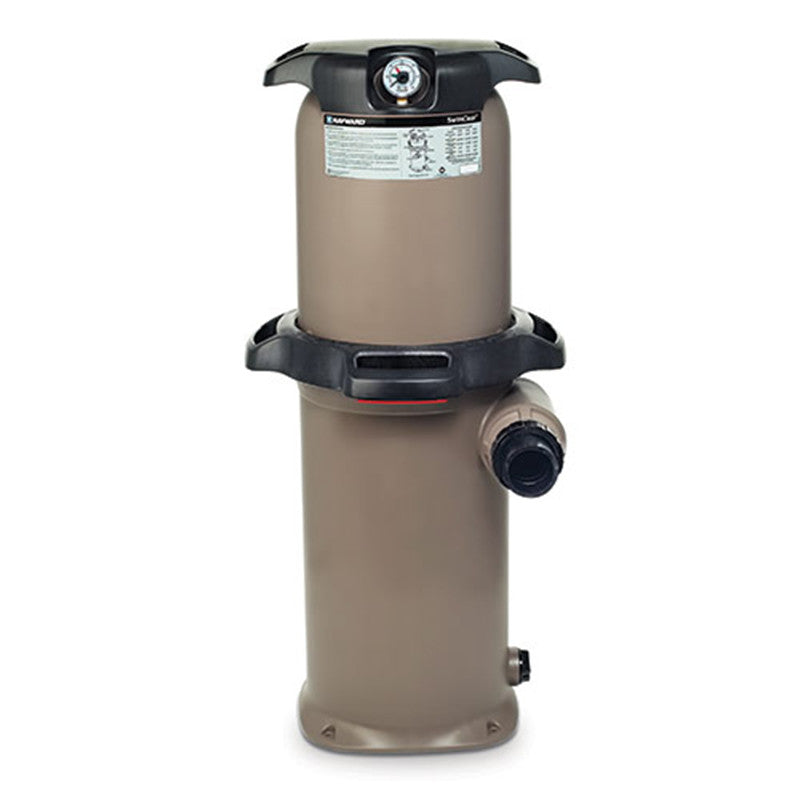

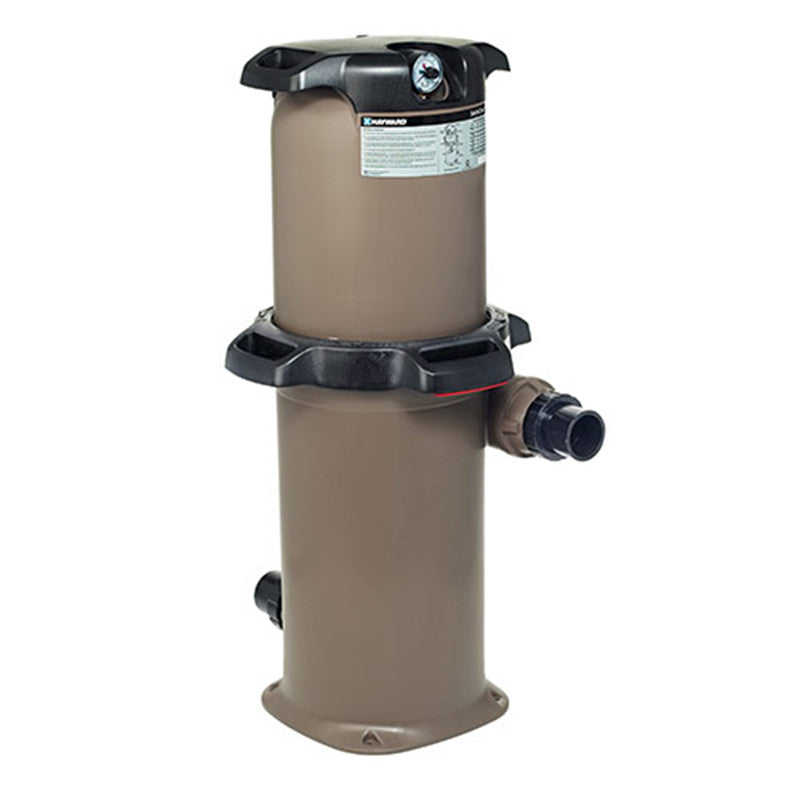

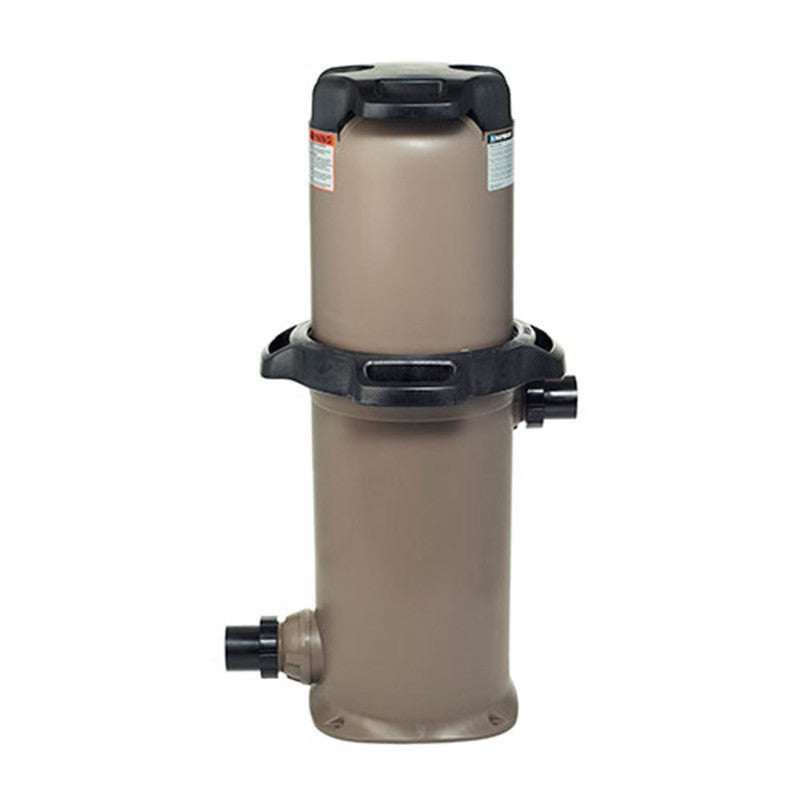

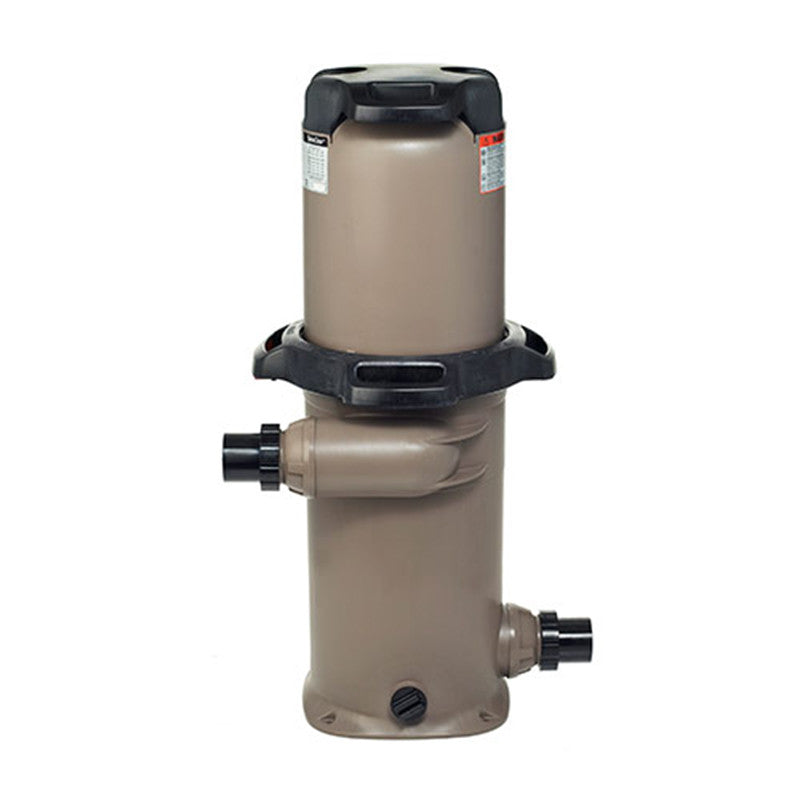

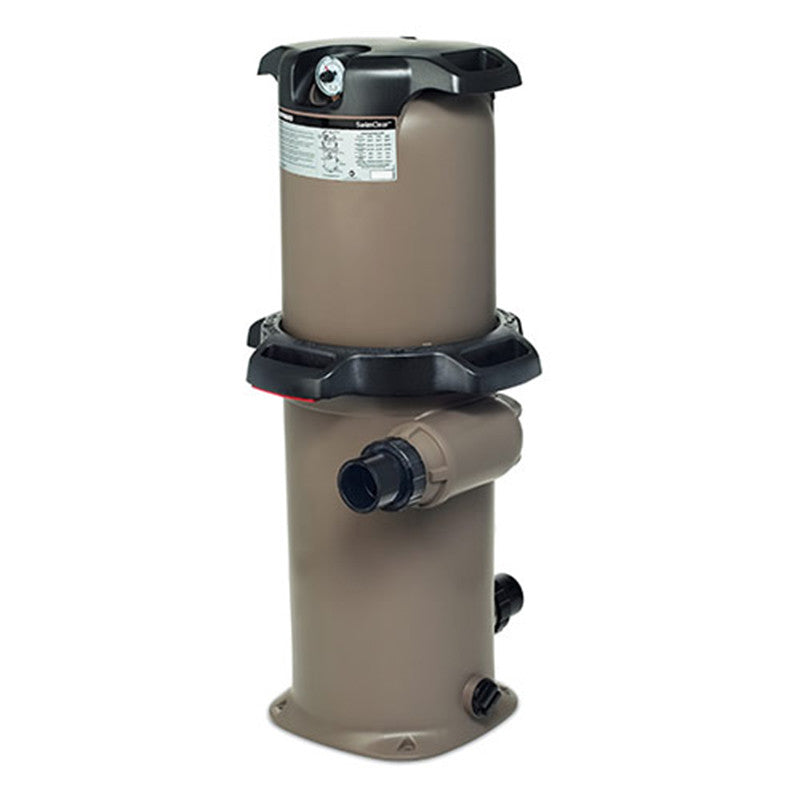

Hayward SwimClear™ 200 Sq Ft Single Element Cartridge Filter
The Hayward SwimClear™ 200 Sq Ft Single Element Cartridge Filter captures more dirt for superior water clarity without supplemental media or backwashing, while the industry's lowest head loss reduces energy costs. The Easy-Lok™ ring design, comfort grip handles, and low lift height make cleaning and element replacement the easiest in the industry. An excellent filtration solution for smaller and mid-size pools, spas, and water features.
Rated for up to 120 GPM at 50 PSI, single cartridge element, injection-molded tank, 2-inch plumbing. Green certified. Backed by a 1-year warranty.
Key Features
200 Sq Ft Single Cartridge — No Backwashing
200 sq ft of filtration area in a single element. No supplemental media or backwashing required — just rinse with a garden hose.
Industry's Lowest Head Loss
Lowest hydraulic resistance in its class — allows your pump to run more efficiently for lower energy costs.
Easy-Lok™ Ring Design
Tool-free tank opening with the Easy-Lok ring — fast access to the cartridge for cleaning or replacement.
Comfort Grip Handles and Low Lift Height
Designed for the easiest cartridge handling in the industry — grip handles and low lift height reduce strain during service.
120 GPM Flow Rate
Handles up to 120 GPM — suited for smaller and mid-size in-ground pools, spas, and water features.
Superior Water Clarity
Single element cartridge filtration removes more fine particles than sand for noticeably cleaner water.
Energy Efficient
Green certified — lowest head loss design lowers operating cost vs. backwash filters.
Who It's For
- Smaller and mid-size in-ground pool, spa, and water feature owners who want the simplest cartridge service experience
- Anyone who values the Easy-Lok ring, grip handles, and low lift height for DIY-friendly maintenance
- Installations where the lowest head loss and energy savings matter
- Hayward system users wanting brand-matched cartridge filtration in the 200 sq ft range
Specifications
Performance
| Filtration Area | 200 sq ft |
| Design / Max Flow Rate | 120 GPM |
| Max Working Pressure | 50 PSI |
| Cartridges Required | 1 (Single Element) |
Tank & Plumbing
| Tank Construction | Injection-Molded |
| Tank Color | Beige / Gray |
| Plumbing Size | 2 in |
| Side Clearance Required | 12 in |
| Vertical Clearance Required | 18 in |
Physical
| Product Weight | 40 lb |
| Shipping Dimensions | 20 × 20 × 40.5 in |
Approvals & Warranty
| Energy Efficient | Yes (Green Certified) |
| Warranty | 1 Year |
What's in the Box
- Hayward SwimClear C200S Filter Tank
- Single Cartridge Element
- Easy-Lok Ring Closure
- User Manual
Warranty
The Hayward SwimClear 200 sq ft Cartridge Filter comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How does the C200S compare to the larger SwimClear models?
The C200S is the smallest in the SwimClear line at 200 sq ft and 120 GPM — ideal for smaller and mid-size pools. The C3030 (325 sq ft) and C4030 (425 sq ft) are better suited for larger pools. All SwimClear models share the Easy-Lok ring design and low head loss advantage.
What is the Easy-Lok ring?
The Easy-Lok ring is Hayward's tool-free tank closure system. Twist the ring to open the tank top for cartridge access — no clamp band, bolts, or tools required. Combined with the comfort grip handles on the cartridge, it makes cleaning significantly faster and easier than traditional filter designs.
How often does the cartridge need cleaning?
Clean when the pressure gauge reads 8–10 PSI above the clean starting pressure. Use the Easy-Lok ring to open the tank, remove the single cartridge, and rinse thoroughly with a garden hose. Frequency varies by pool size and usage — typically every 2–6 months.
