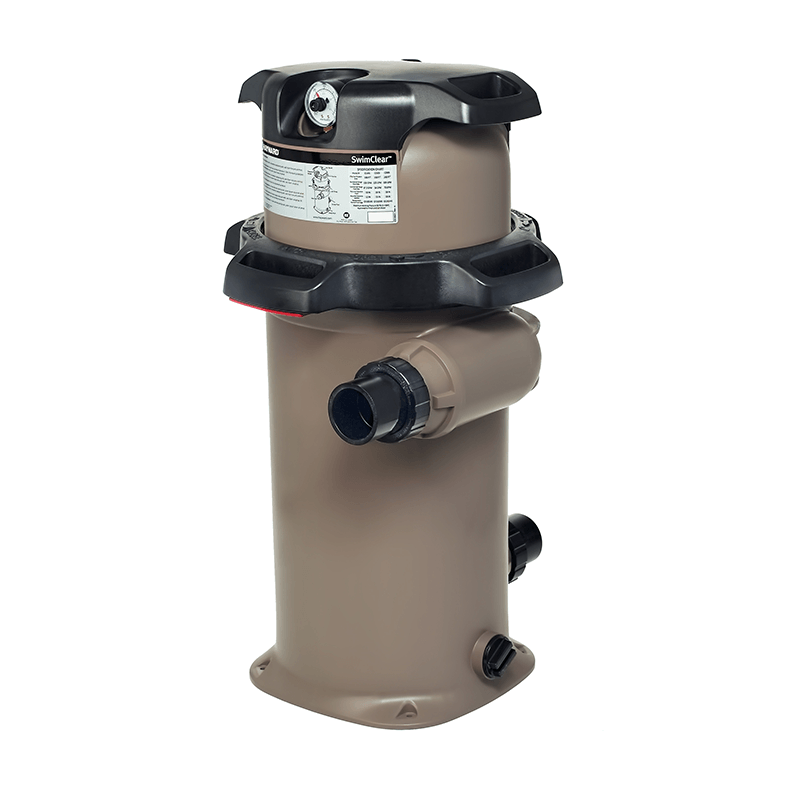

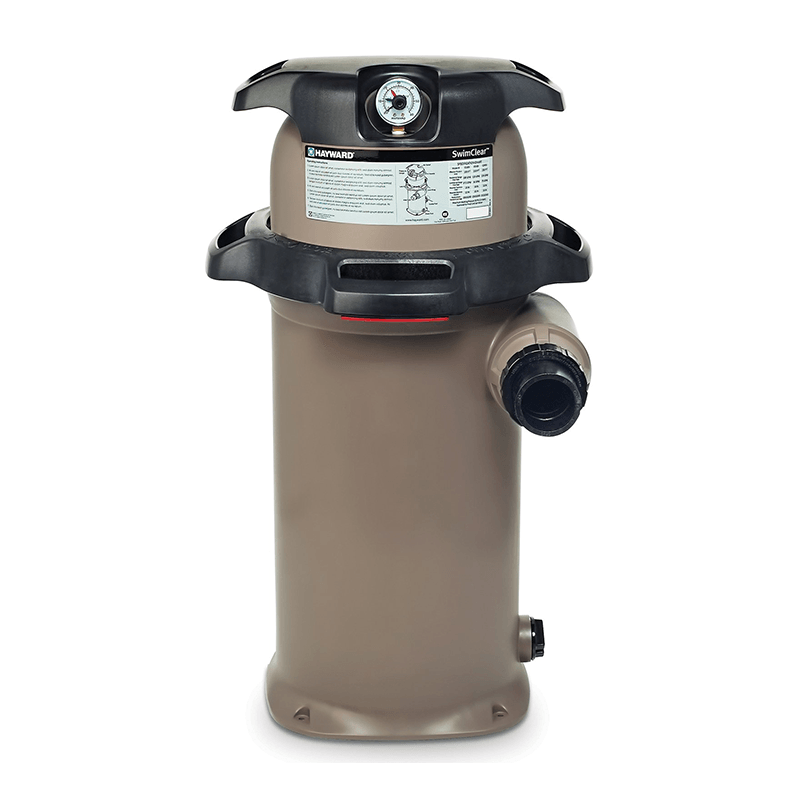

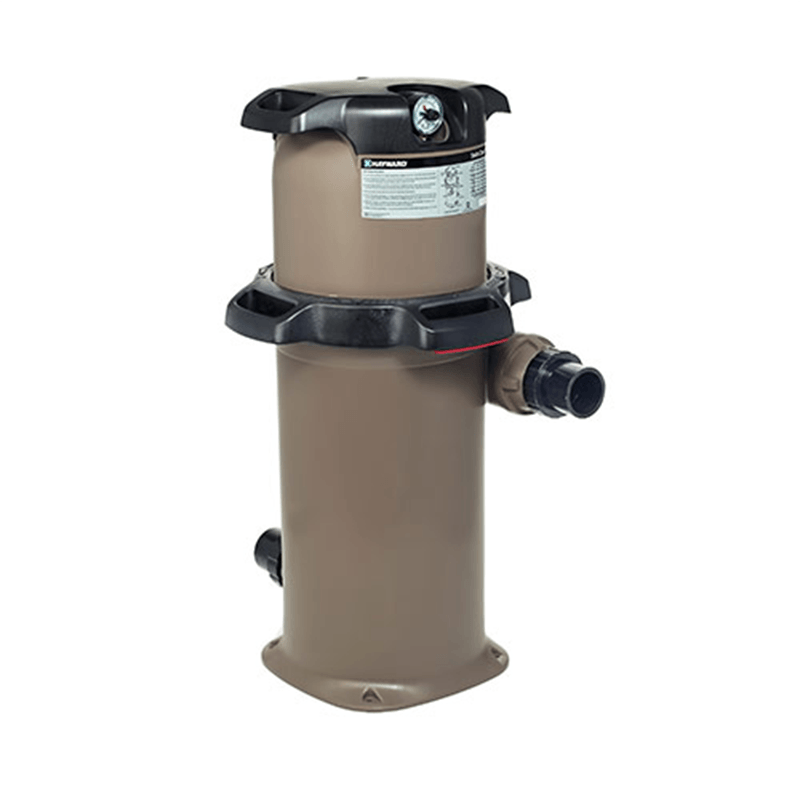

Hayward SwimClear™ 150 Sq Ft Single Element Cartridge Filter
The Hayward SwimClear™ 150 Sq Ft Single Element Cartridge Filter is the entry model in the SwimClear single-element line — capturing more dirt for superior water clarity without supplemental media or backwashing, while the industry's lowest head loss reduces energy costs. The Easy-Lok™ ring design, comfort grip handles, and lowest lift height make servicing the easiest in the industry. An excellent filtration solution for smaller pools, spas, and water features.
Rated for up to 120 GPM at 50 PSI, single cartridge element, injection-molded tank, 2-inch NPT plumbing, minimal clearance requirements. Green certified. Backed by a 1-year warranty.
Key Features
150 Sq Ft Single Cartridge — No Backwashing
150 sq ft of filtration area in a single element. No supplemental media or backwashing required — rinse with a garden hose.
Industry's Lowest Head Loss
Lowest hydraulic resistance in its class — allows your pump to run more efficiently for lower energy costs.
Easy-Lok™ Ring Design
Tool-free tank opening — fast access to the cartridge for cleaning or replacement.
Comfort Grip Handles and Lowest Lift Height
Easiest cartridge handling in the industry — grip handles and lowest lift height reduce strain during service.
120 GPM Flow Rate
Handles up to 120 GPM — suited for smaller pools, spas, and water features.
Minimal Clearance Requirements
Only 12-inch side clearance and 15-inch vertical clearance required — fits tighter equipment pad configurations.
NPT Plumbing Connections
Standard 2-inch NPT threaded connections for straightforward installation.
Energy Efficient
Green certified — lowest head loss design lowers operating cost.
Who It's For
- Smaller in-ground pool, spa, and water feature owners who want the simplest cartridge service experience
- Anyone looking for the entry SwimClear single-element model at a lower price than the 200 sq ft C200S
- Tight equipment pad installations requiring minimum 12-inch side clearance
- Hayward system users wanting brand-matched cartridge filtration in the 150 sq ft range
Specifications
Performance
| Filtration Area | 150 sq ft |
| Design / Max Flow Rate | 120 GPM |
| Max Working Pressure | 50 PSI |
| Cartridges Required | 1 (Single Element) |
Tank & Plumbing
| Tank Construction | Injection-Molded |
| Tank Color | Beige / Gray |
| Plumbing Size | 2 in NPT |
| Side Clearance Required | 12 in |
| Vertical Clearance Required | 15 in |
Physical
| Product Weight | 35 lb |
| Shipping Dimensions | 20 × 20 × 35.5 in |
Approvals & Warranty
| Energy Efficient | Yes (Green Certified) |
| Warranty | 1 Year |
What's in the Box
- Hayward SwimClear C150S Filter Tank
- Single Cartridge Element
- Easy-Lok Ring Closure
- User Manual
Warranty
The Hayward SwimClear 150 sq ft Cartridge Filter comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How does the C150S (150 sq ft) compare to the C200S (200 sq ft)?
Both are SwimClear single-element cartridge filters with identical Easy-Lok ring, comfort grip handles, and 120 GPM flow rating. The C150S has 50 sq ft less filter area — a slightly shorter tank (ships at 35.5 in vs. 40.5 in) requiring only 15 in of vertical clearance vs. 18 in for the C200S. Choose the C150S for smaller pools or installations with very limited vertical clearance; choose the C200S for more filter area and longer cleaning intervals.
How often does the cartridge need cleaning?
Clean when the pressure gauge reads 8–10 PSI above the clean starting pressure. Use the Easy-Lok ring to open the tank, remove the single cartridge, and rinse with a garden hose. Frequency varies by pool size and usage.
Does it require backwashing?
No. The SwimClear is a cartridge filter — no backwash cycle. Simply remove the cartridge and rinse with a garden hose.
