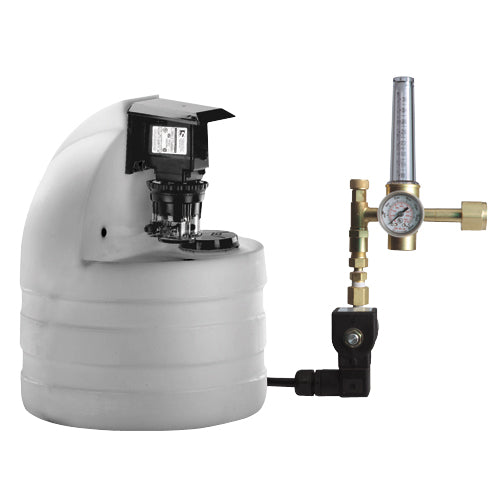

Hayward Standard CO2 System
The Hayward Standard CO2 System is a complete CO2 pH reduction package for swimming pools, spas, and water features with light to moderate pH demand. Everything needed to connect a CO2 tank to your pH control system is included — and the integrated regulator and flow control module keeps installation simple and the hardware compact.
Built by Hayward with a solenoid valve, 30-foot installation tubing kit, integrated regulator, flowmeter, power cord, and PVC check valve injector — all included. Simple to install and operate. Backed by a 1-year warranty.
Key Features
Complete CO2 System Package
Solenoid valve, 30-foot tubing kit, integrated regulator, flowmeter, power cord, and PVC check valve injector all included.
Integrated Regulator and Flow Control
Pressure regulator and flow control combined in a single module for years of efficient, reliable service and a cleaner installation.
30-Foot Installation Tubing Kit
30 feet of installation tubing included — enough reach for most equipment pad-to-return line installations.
Standard Output — Light to Moderate Demand
Sized for pools, spas, and water features with standard pH reduction requirements.
PVC Check Valve Injector
Included injector with check valve prevents backflow of pool water into the CO2 line.
Simple to Install and Operate
Designed for straightforward installation and trouble-free operation.
1-Year Warranty
Hayward commercial warranty coverage.
Who It's For
- Commercial pool, spa, and water feature operators using CO2 for pH control with light to moderate demand
- Anyone building a CO2-based pH control system who wants a complete all-in-one package
- Facilities where the integrated regulator/flow module simplifies the installation
- Applications where the High Output CO2 System (AC005) would be oversized
Specifications
System
| Function | Standard Output CO2 pH Dosing System |
| Includes | Solenoid Valve, 30-Ft Tubing Kit, Integrated Regulator/Flowmeter, Power Cord, PVC Check Valve Injector |
| CO2 Tank | Not Included |
Physical
| Product Weight | 7 lb |
| Shipping Dimensions | 11.2 × 8.3 × 4 in |
Approvals & Warranty
| Warranty | 1 Year |
What's in the Box
- Solenoid Valve
- 30-Foot Installation Tubing Kit
- Integrated Regulator and Flowmeter Module
- Power Cord
- PVC Check Valve Injector
- Installation Instructions
Note: CO2 tank not included. Must be sourced locally from a CO2 gas supplier.
Warranty
The Hayward Standard CO2 System comes with a 1-year warranty. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
Frequently Asked Questions
When should I choose the Standard CO2 System (AC004) vs. the High Output system (AC005)?
The AC004 Standard System is designed for pools, spas, and water features with light to moderate pH reduction demand — typically smaller commercial pools, spas, or features where pH drift is gradual. The AC005 High Output System is for larger commercial pools with greater or faster pH control demand. If you're unsure, your pool professional can advise based on your pool volume and bather load.
Does this work with any pH controller?
Yes. The solenoid valve accepts a control signal from any compatible pH controller — Hayward CAT series, HCC series, Pentair IntelliChem, and other brands that support CO2 feed equipment.
Why is a check valve injector important?
The PVC check valve injector prevents pool water from back-siphoning into the CO2 tubing when the system is not dosing — protecting the CO2 equipment from moisture and chemical contamination and ensuring reliable operation.
