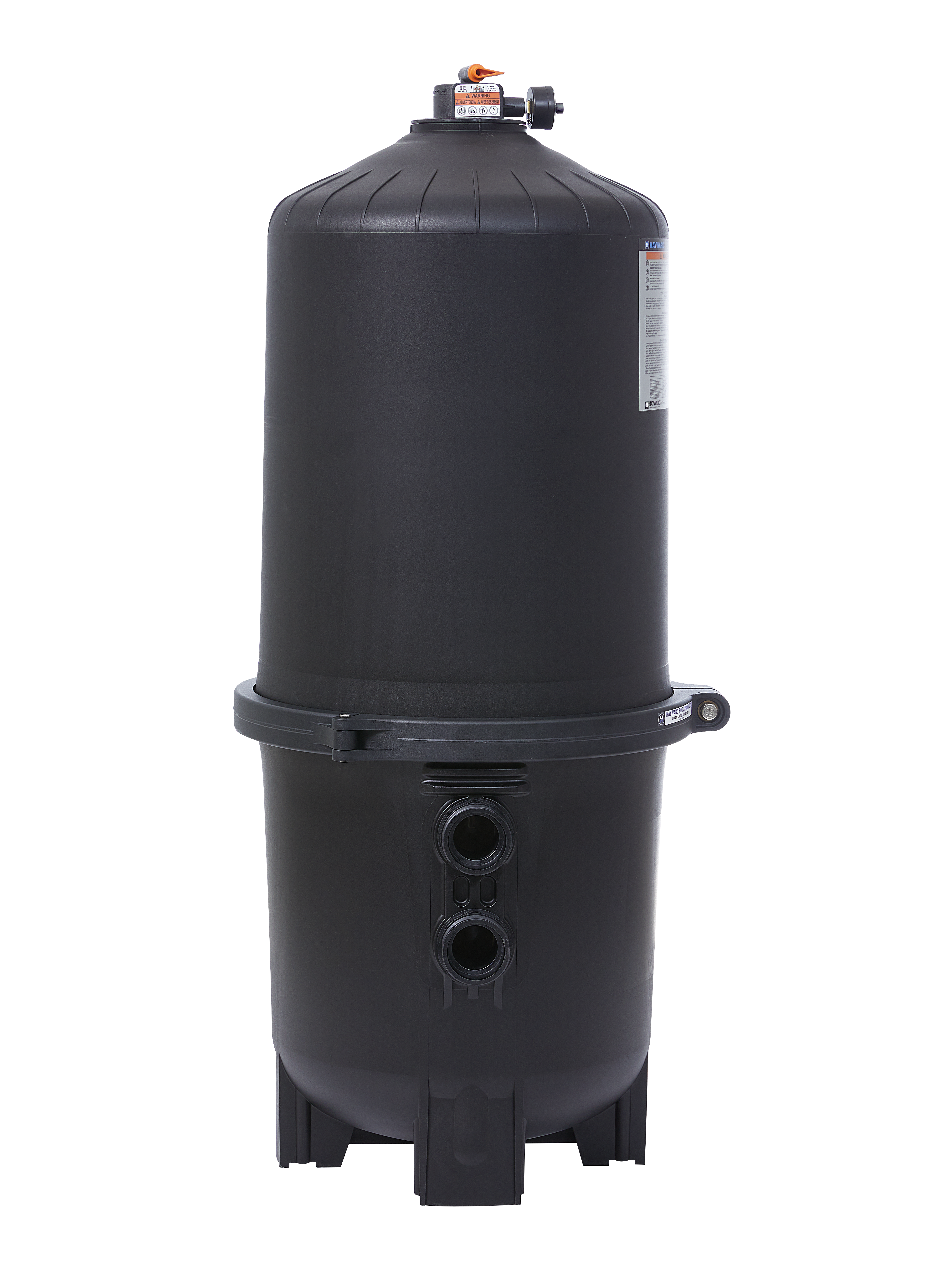

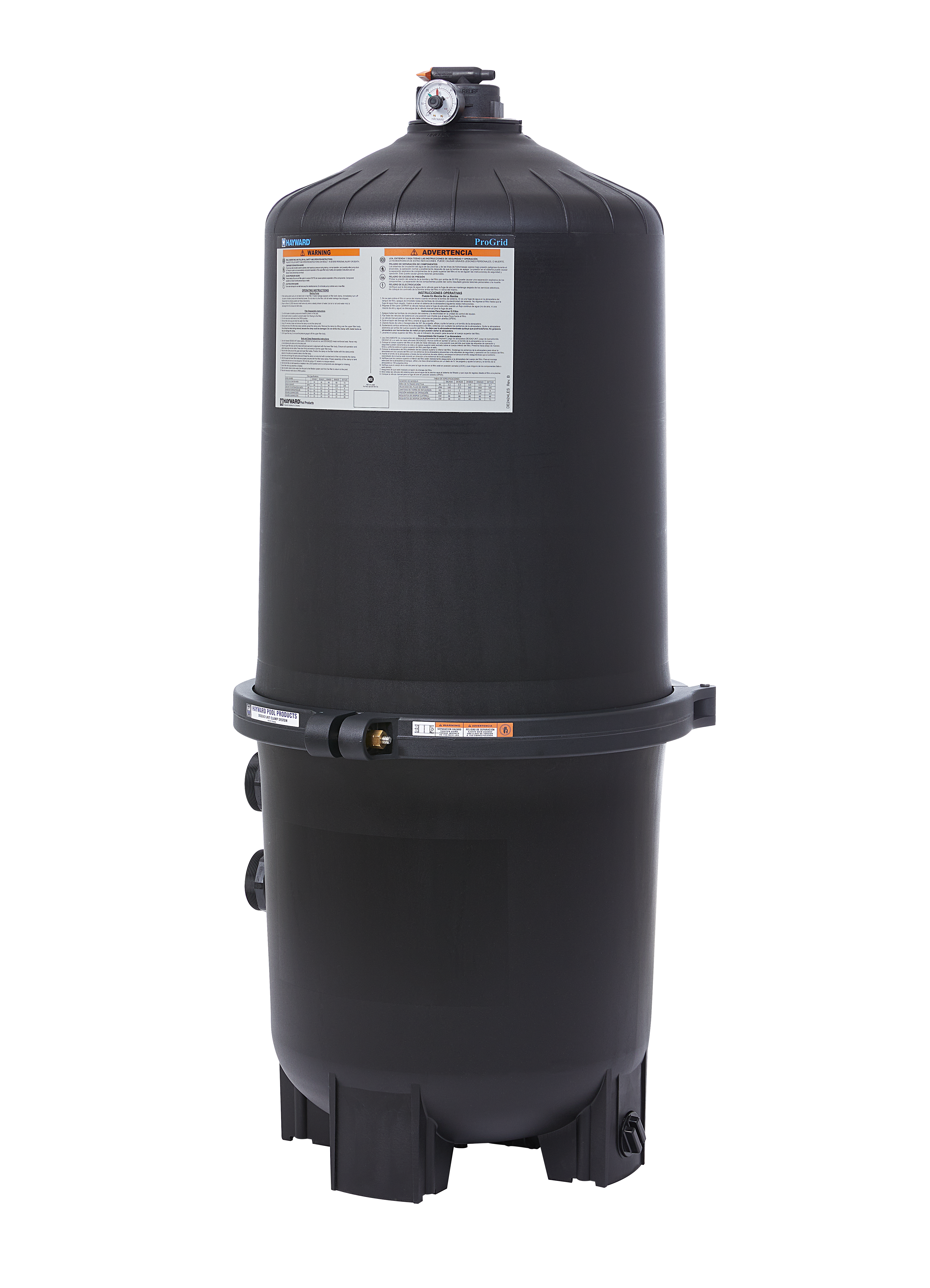

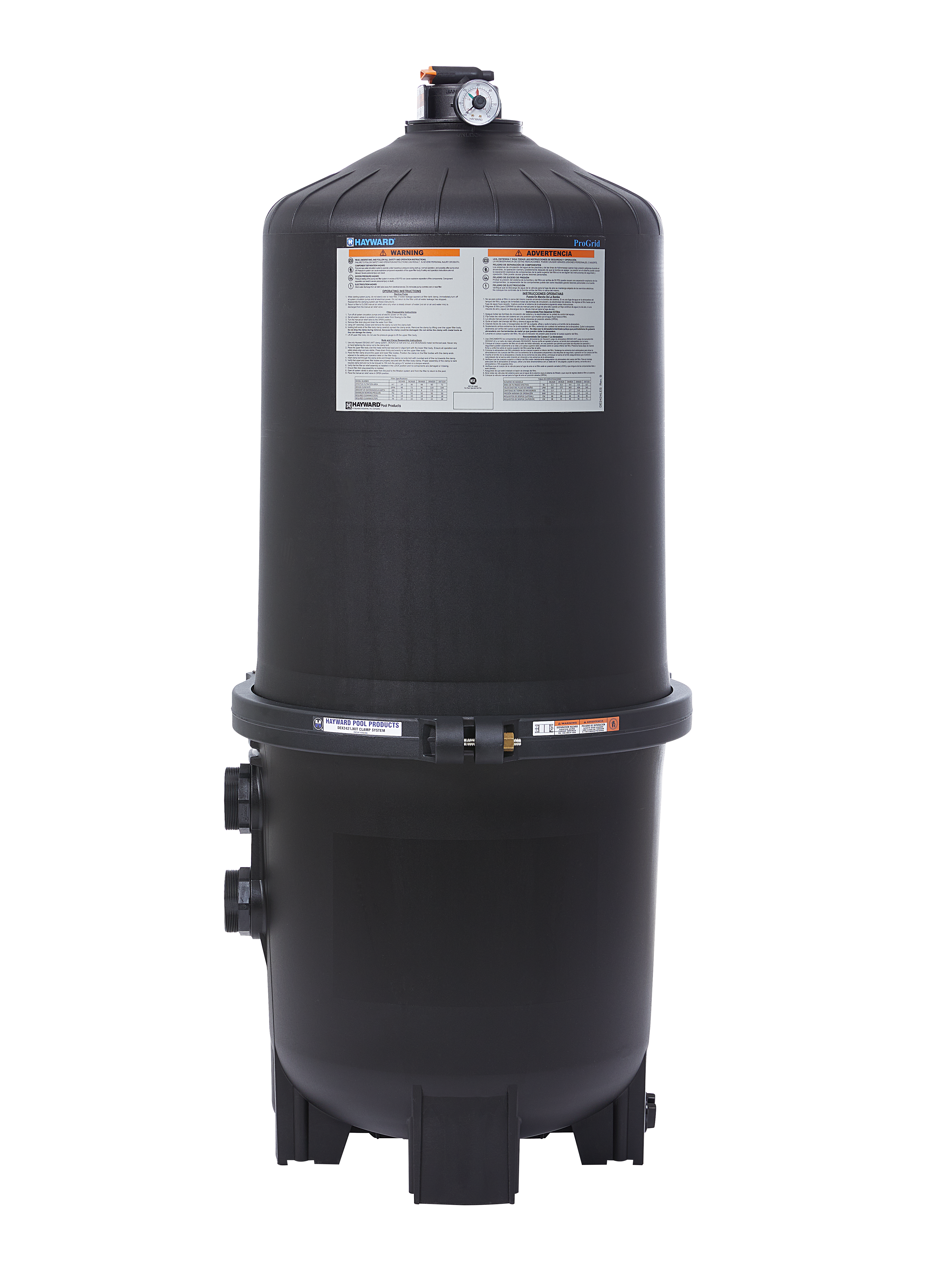

Hayward ProGrid™ 72 Sq Ft Vertical Grid D.E. Filter
The Hayward ProGrid™ 72 Sq Ft Vertical Grid D.E. Filter is the largest model in the ProGrid lineup — delivering superior water clarity, efficient flow, and maximum D.E. filtration capacity for residential pools and spas of all types and sizes. More grid area means the longest cleaning intervals and the highest dirt-holding capacity available in the ProGrid line.
Built with a durable thermoplastic tank rated to 50 PSI, inlet diffuser elbow for uniform grid loading, one-piece tamper-proof flange clamp, high-capacity rapid-release manual air relief, and full-size 1.5-inch integral drain. Compatible with pumps up to 3 HP. Backed by a 2-year warranty.
Key Features
72 Sq Ft — Largest ProGrid Model
Maximum D.E. filtration area in the Hayward ProGrid line — the longest cleaning intervals and highest dirt-holding capacity available.
D.E.-Level Water Clarity
Vertical grid D.E. filtration to 3–5 microns — the finest water clarity achievable from any residential filter.
Inlet Diffuser Elbow
Distributes incoming water evenly across all 72 sq ft of filter grid area for consistent filtration and uniform D.E. loading.
Service-Ease Design
One-piece flange clamp, rapid-release air relief, and full 1.5-inch drain for straightforward service access.
High-Capacity Rapid-Release Air Relief
Quarter-turn lever bleeds air quickly at startup or after backwash.
One-Piece Tamper-Proof Flange Clamp
Heavy-duty clamp for secure tank fastening and quick access to internals.
Bulkhead Fittings with Union Locknuts
Durable, leak-free plumbing connections.
Up to 3 HP / 50 PSI / 2-Year Warranty
Compatible with pumps up to 3 HP, Hayward 2-year residential warranty.
Who It's For
- In-ground pool and spa owners who want maximum ProGrid capacity for the longest D.E. cleaning intervals
- Larger residential pools or heavy bather loads where the 60 sq ft DE6020 is undersized
- Anyone who wants the absolute top of the Hayward ProGrid D.E. lineup
- Hayward system users wanting brand-matched D.E. filtration at maximum residential capacity
Specifications
Performance
| Filtration Area | 72 sq ft |
| Filter Type | Vertical Grid D.E. |
| Max Working Pressure | 50 PSI |
| Max Pump Size | 3 HP |
Tank & Plumbing
| Tank Material | Thermoplastic |
| Filter Control Valve | Injection-Molded Polymer |
| Drain Size | 1.5 in (Full-Size Integral) |
| Side Clearance Required | 18 in |
| Vertical Clearance Required | 25 in |
Physical
| Product Weight | 93 lb |
| Shipping Dimensions | 24.6 × 23.1 × 53.8 in |
Approvals & Warranty
| Application | In-Ground Pool / Spa |
| Warranty | 2 Years |
What's in the Box
- Hayward ProGrid DE7220 Filter Tank with Vertical Grid Assembly
- One-Piece Flange Clamp
- User Manual
Note: Diatomaceous earth (D.E. powder) is not included and must be purchased separately.
Warranty
The Hayward ProGrid 72 sq ft D.E. Filter comes with a 2-year manufacturer warranty. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How does the ProGrid 72 (DE7220) compare to the ProGrid 60 (DE6020)?
Both are Hayward ProGrid vertical grid D.E. filters with identical features and 2-year warranties. The DE7220 has 20% more grid area (72 vs. 60 sq ft) — the longest cleaning intervals and highest capacity in the ProGrid residential line. It also ships taller (53.8 in vs. 47.8 in) and is slightly heavier (93 lb vs. 83 lb). Choose the DE7220 for the absolute maximum ProGrid capacity.
How much D.E. powder does this filter require?
The ProGrid DE7220 (72 sq ft) typically requires approximately 10–11 lb of D.E. powder after backwashing or reassembly. Always follow the specific amount in the owner's manual and use pool-grade diatomaceous earth.
Does this filter require backwashing?
Yes. D.E. filters are backwashed when pressure rises 8–10 PSI above the starting pressure. After backwashing, fresh D.E. powder must be added through the skimmer. Annual grid teardown and thorough cleaning is also recommended.
