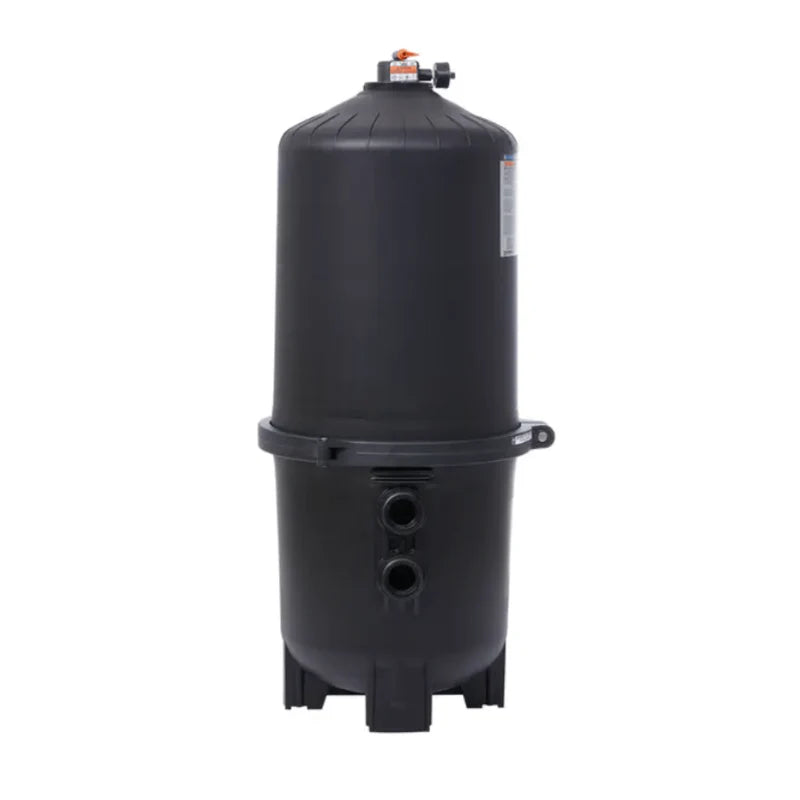

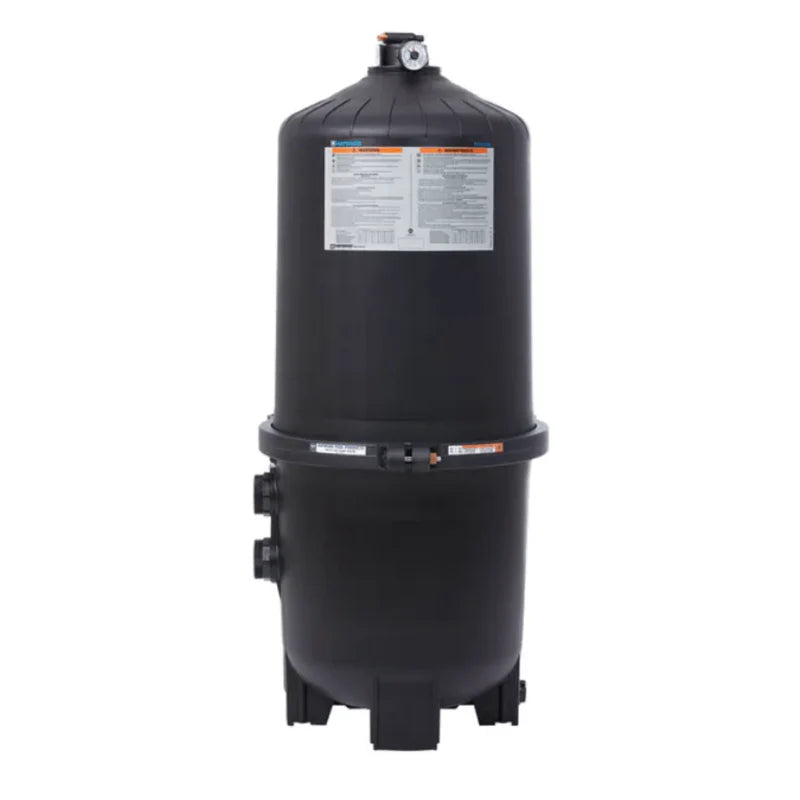

Hayward ProGrid™ 60 Sq Ft Vertical Grid D.E. Filter
The Hayward ProGrid™ 60 Sq Ft Vertical Grid D.E. Filter is the largest ProGrid model — providing superior water clarity, efficient flow, and the highest D.E. filtration capacity for residential pools and spas of all types and sizes. ProGrid combines high-tech features with a service-ease design for unparalleled D.E. filtration.
Built with a durable thermoplastic tank rated to 50 PSI, inlet diffuser elbow for even grid loading, one-piece tamper-proof flange clamp, rapid-release manual air relief, and full-size 1.5-inch integral drain. Compatible with pumps up to 3 HP. Backed by a 2-year warranty.
Key Features
60 Sq Ft — Largest ProGrid Model
Maximum D.E. filtration area in the Hayward ProGrid line — longest cleaning intervals and highest dirt-holding capacity for residential pools.
D.E.-Level Water Clarity
Vertical grid D.E. filtration to 3–5 microns — the finest water clarity available from any residential filter type.
Inlet Diffuser Elbow
Distributes incoming water evenly over all filter elements for uniform D.E. loading and consistent filtration across the full 60 sq ft grid area.
Service-Ease Design
One-piece flange clamp, rapid-release air relief, and full 1.5-inch drain for fast, straightforward service access.
High-Capacity Rapid-Release Air Relief
Quarter-turn lever bleeds air quickly at startup or after backwash.
One-Piece Tamper-Proof Flange Clamp
Heavy-duty clamp for secure tank fastening and quick access to internals.
Bulkhead Fittings with Union Locknuts
Simple, durable plumbing connections for secure installation.
Up to 3 HP / 50 PSI
Handles pumps up to 3 HP at 50 PSI maximum working pressure.
2-Year Warranty
Hayward residential warranty coverage.
Who It's For
- In-ground pool and spa owners who want maximum D.E. filtration capacity in the ProGrid line
- Larger residential pools or high bather loads where the 48 sq ft DE4820 is insufficient
- Anyone who wants the longest possible intervals between D.E. backwash cycles
- Hayward system users wanting brand-matched D.E. filtration at maximum residential ProGrid capacity
Specifications
Performance
| Filtration Area | 60 sq ft |
| Filter Type | Vertical Grid D.E. |
| Max Working Pressure | 50 PSI |
| Max Pump Size | 3 HP |
Tank & Plumbing
| Tank Material | Thermoplastic |
| Filter Control Valve | Injection-Molded Polymer |
| Drain Size | 1.5 in (Full-Size Integral) |
| Side Clearance Required | 18 in |
| Vertical Clearance Required | 22 in |
Physical
| Product Weight | 83 lb |
| Shipping Dimensions | 23.1 × 24.6 × 47.8 in |
Approvals & Warranty
| Application | In-Ground Pool / Spa |
| Warranty | 2 Years |
What's in the Box
- Hayward ProGrid DE6020 Filter Tank with Vertical Grid Assembly
- One-Piece Flange Clamp
- User Manual
Note: Diatomaceous earth (D.E. powder) is not included and must be purchased separately.
Warranty
The Hayward ProGrid 60 sq ft D.E. Filter comes with a 2-year manufacturer warranty. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How does the ProGrid 60 (DE6020) compare to the ProGrid 48 (DE4820)?
Both are Hayward ProGrid vertical grid D.E. filters with identical features and 2-year warranties. The DE6020 has 25% more grid area (60 vs. 48 sq ft) — providing longer intervals between cleanings and better performance under heavier bather loads. It also ships taller (47.8 in vs. 41.8 in) and weighs more (83 lb vs. 75 lb). Choose the DE6020 for larger pools or when maximum D.E. capacity is the priority.
How much D.E. powder does this filter require?
The ProGrid DE6020 (60 sq ft) typically requires approximately 9 lb of D.E. powder after backwashing or reassembly. Always follow the specific amount in the owner's manual and use pool-grade diatomaceous earth.
Does this filter require backwashing?
Yes. D.E. filters are backwashed when pressure rises 8–10 PSI above the starting pressure. After backwashing, fresh D.E. powder must be added through the skimmer. Annual grid teardown and thorough cleaning is also recommended.
