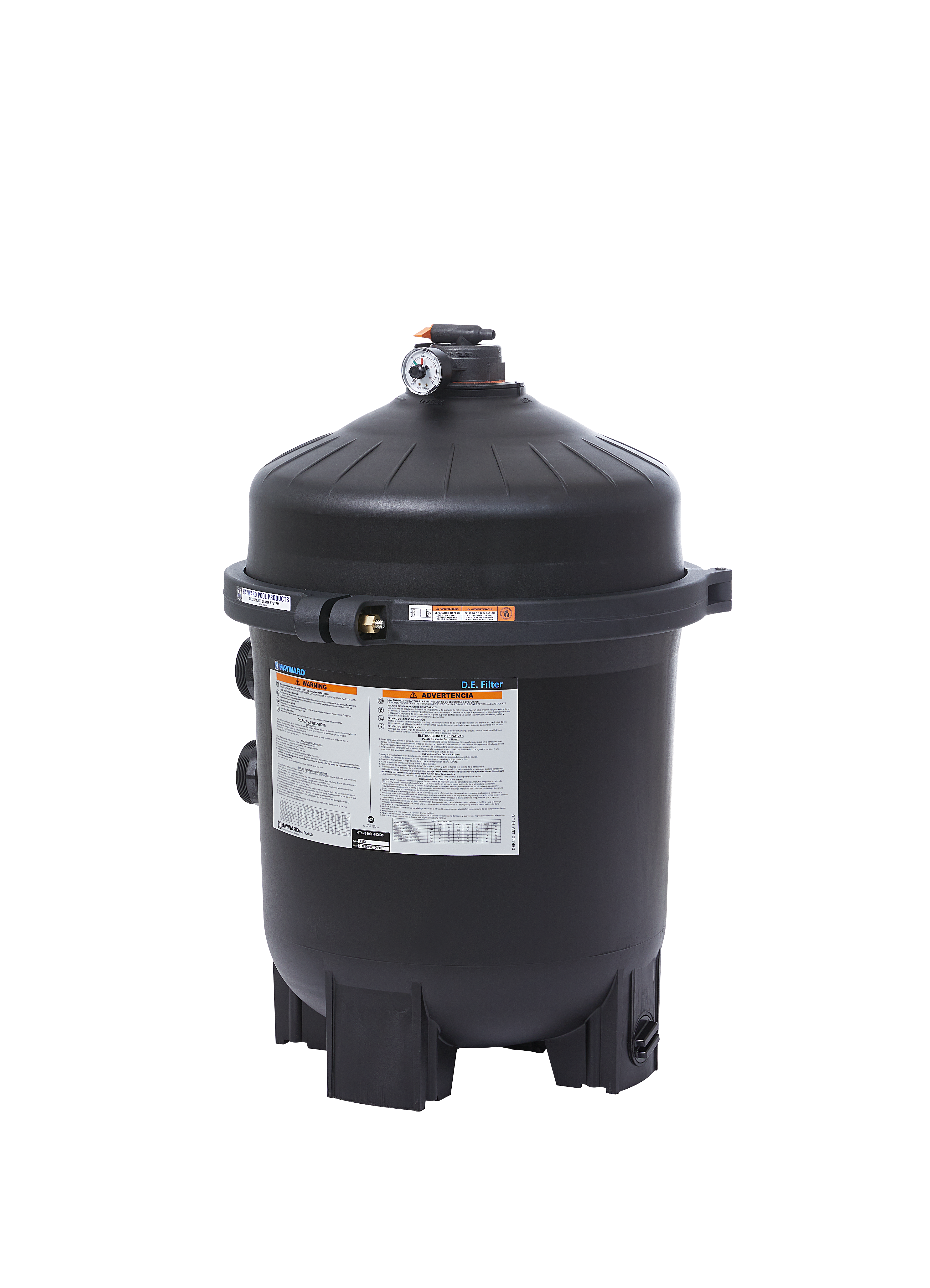

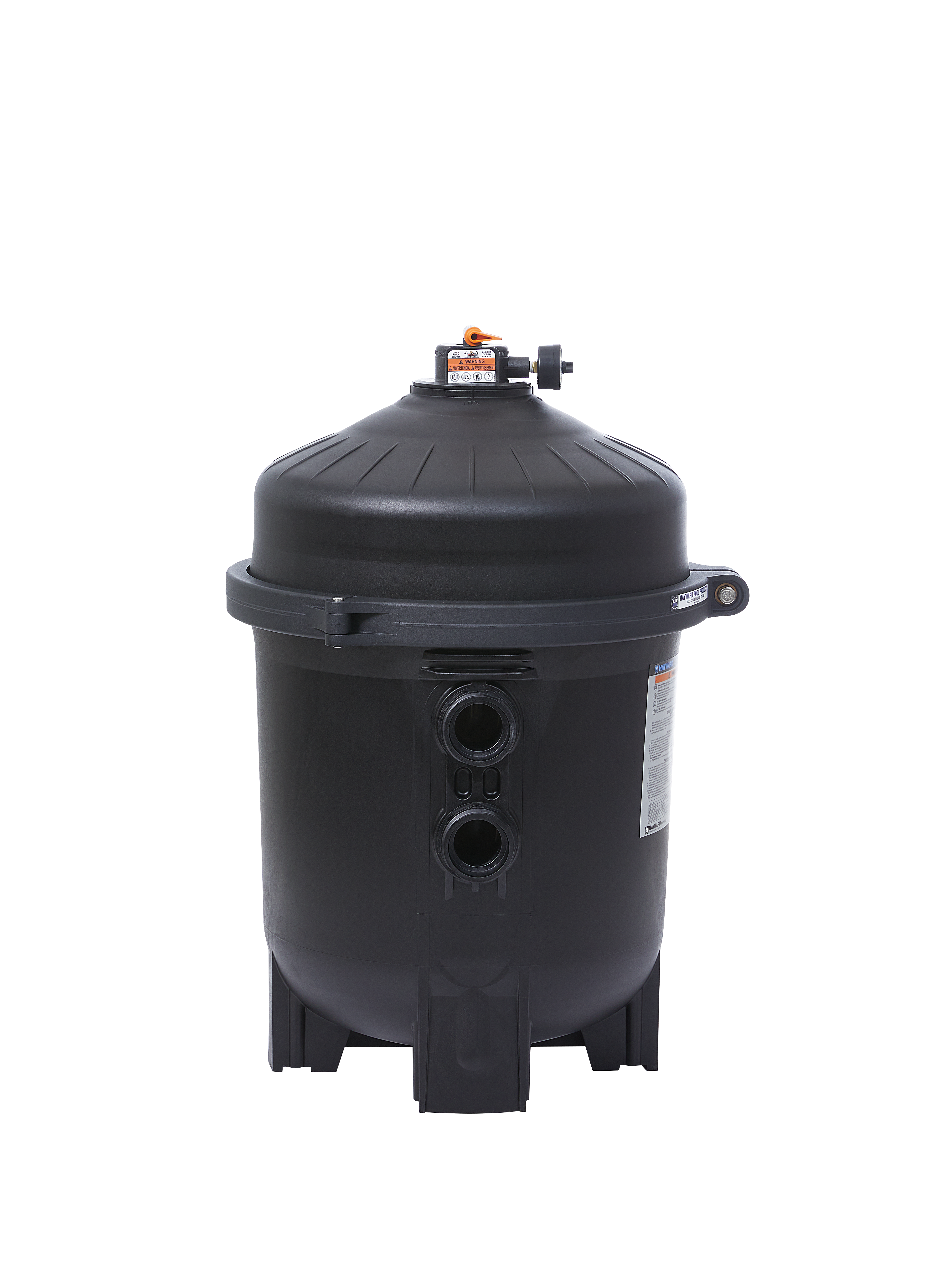

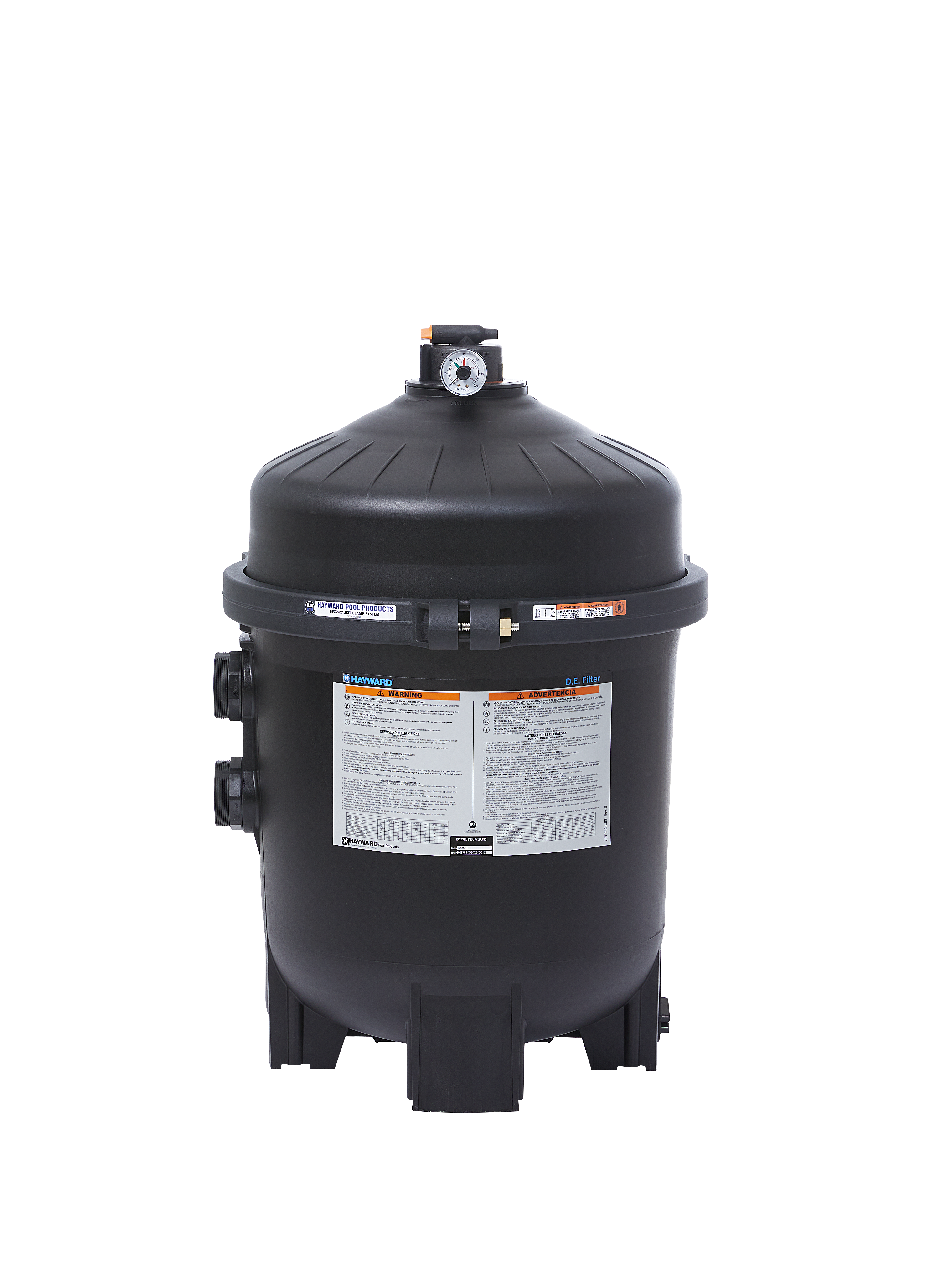

Hayward ProGrid™ 36 Sq Ft Vertical Grid D.E. Filter
The Hayward ProGrid™ 36 Sq Ft Vertical Grid D.E. Filter provides superior water clarity, efficient flow, and large cleaning capacity for pools and spas of all types and sizes — in a slightly smaller footprint than the 48 sq ft DE4820. ProGrid combines high-tech filtration features with a service-ease design for unparalleled D.E. filtration performance.
Built with a durable thermoplastic tank rated to 50 PSI, one-piece tamper-proof flange clamp, rapid-release manual air relief, inlet diffuser elbow for even grid loading, and full-size 1.5-inch integral drain. Compatible with pumps up to 3 HP. Backed by a 2-year warranty.
Key Features
36 Sq Ft D.E. Filtration
Vertical grid D.E. filtration down to 3–5 microns — the finest water clarity available from any filter type.
Service-Ease Design
One-piece flange clamp, rapid-release air relief, and 1.5-inch integral drain make backwashing and annual maintenance fast and straightforward.
Inlet Diffuser Elbow
Distributes incoming water evenly over all filter elements for uniform D.E. loading and consistent filtration.
High-Capacity Rapid-Release Air Relief
Quarter-turn lever bleeds air quickly at startup or after backwash.
One-Piece Tamper-Proof Flange Clamp
Heavy-duty clamp for secure tank fastening and quick access to internals.
Full-Size 1.5" Integral Drain
Fast, complete tank flushing during backwash or seasonal drain-down.
Bulkhead Fittings with Union Locknuts
Simple, durable plumbing connections for leak-free installation.
Up to 3 HP Compatible
50 PSI maximum working pressure — handles pumps up to 3 HP.
2-Year Warranty
Hayward residential warranty coverage.
Who It's For
- In-ground pool and spa owners who want D.E. filtration in a smaller capacity than the 48 sq ft DE4820
- Pools where 36 sq ft of D.E. is correctly sized — lower bather load or smaller pool volume
- Anyone upgrading from sand who wants crystal-clear D.E. water quality
- Hayward system users wanting brand-matched D.E. filtration
Specifications
Performance
| Filtration Area | 36 sq ft |
| Filter Type | Vertical Grid D.E. |
| Max Working Pressure | 50 PSI |
| Max Pump Size | 3 HP |
Tank & Plumbing
| Tank Material | Thermoplastic |
| Filter Control Valve | Injection-Molded Polymer |
| Drain Size | 1.5 in (Full-Size Integral) |
| Side Clearance Required | 18 in |
| Vertical Clearance Required | 16 in |
Physical
| Product Weight | 66 lb |
| Shipping Dimensions | 23.1 × 24.6 × 35.7 in |
Approvals & Warranty
| Application | In-Ground Pool / Spa |
| Warranty | 2 Years |
What's in the Box
- Hayward ProGrid DE3620 Filter Tank with Vertical Grid Assembly
- One-Piece Flange Clamp
- User Manual
Note: Diatomaceous earth (D.E. powder) is not included and must be purchased separately.
Warranty
The Hayward ProGrid 36 sq ft D.E. Filter comes with a 2-year manufacturer warranty. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
What is the difference between the ProGrid 36 (DE3620) and the ProGrid 48 (DE4820)?
Both are Hayward ProGrid vertical grid D.E. filters with identical features and 2-year warranties. The DE3620 has 36 sq ft of filter area vs. 48 sq ft for the DE4820, making it suited for smaller pools or lower bather loads where 48 sq ft would be oversized. The DE4820 is 9 lb heavier and ships slightly taller.
How much D.E. powder does this filter require?
The ProGrid DE3620 (36 sq ft) typically requires approximately 5.4 lb of D.E. powder after backwashing or reassembly. Always follow the specific charge amount in the owner's manual and use pool-grade diatomaceous earth.
Does this filter require backwashing?
Yes. D.E. filters are backwashed to clean the grids when the pressure rises 8–10 PSI above the starting pressure. After backwashing, fresh D.E. powder must be added through the skimmer. Annual teardown and thorough grid cleaning is also recommended.
