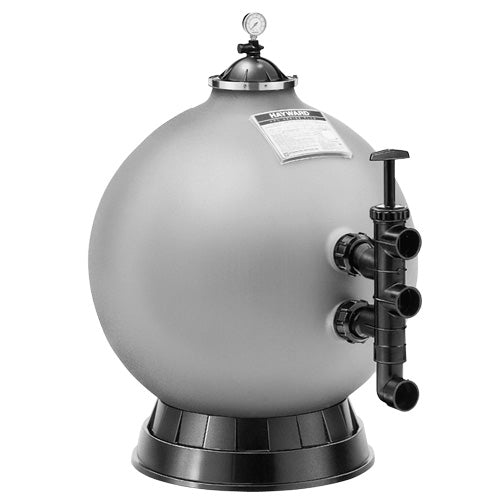

Hayward Pro Series 31" Side Mount Sand Filter with 2" Slide Valve
The Hayward Pro Series 31" Side Mount Sand Filter with 2" Slide Valve (S311SXV) is a complete ProSeries system engineered with a 2-inch slide valve for commercial, professional, and residential pool installations where a two-position slide valve is preferred over a multi-port configuration. The ProSeries umbrella-fold self-cleaning lateral system provides efficient flow and totally balanced backwashing for long-lasting performance.
31-inch side-mount tank with 5 sq ft filtration area, injection-molded ABS base, 50 PSI working pressure. Slide valve operates in filter and backwash positions. Backed by a 1-year warranty.
Note: Filter sand is not included and must be sourced separately.
Key Features
2" Slide Valve Included
Complete system with 2-inch slide valve — simple two-position operation (filter/backwash) preferred in many commercial and professional applications.
31" Side-Mount Tank
5 sq ft filtration area — between the 30-inch and larger commercial tank sizes.
Umbrella-Fold Self-Cleaning Laterals
Precision-engineered laterals for efficient, balanced flow and backwashing performance.
Corrosion-Proof Construction
Durable all-weather polymer tank and ABS base construction.
Commercial / Professional / Residential
Rated for use across all installation types.
1-Year Warranty
Hayward warranty coverage.
Who It's For
- Commercial and professional pool installations where a 2-position slide valve is specified
- Pool systems where a slide valve is preferred over a multiport for simplicity or automation compatibility
- New installations and replacements requiring the 31-inch ProSeries side-mount platform with slide valve
Specifications
Performance
| Filtration Area | 5 sq ft |
| Filter Type | Side-Mount Sand |
| Max Working Pressure | 50 PSI |
Valve
| Control Valve | 2 in Slide Valve (Included) |
| Valve Positions | Filter / Backwash (2-Position) |
| Mounting | Side Mount |
Tank
| Tank Diameter | 31 in |
| Lateral System | Umbrella-Fold Self-Cleaning |
| Base Material | Injection-Molded ABS |
| Side Clearance Required | 18 in |
| Vertical Clearance Required | 18 in |
Physical
| Product Weight | 84 lb |
| Shipping Dimensions | 31 × 31 × 37 in |
Approvals & Warranty
| Application | Pool (Residential, Commercial, Professional) |
| Warranty | 1 Year |
What's in the Box
- Hayward Pro Series S311SXV 31" Sand Filter Tank
- 2" Slide Valve
- User Manual
Note: Filter sand is not included and must be purchased separately.
Warranty
The Hayward Pro Series S311SXV comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
What is a slide valve and how does it differ from a VariFlo multiport?
A slide valve is a two-position valve — it slides between Filter and Backwash positions. A VariFlo multiport has 6 or 7 positions (Filter, Backwash, Rinse, Waste, Recirculate, Closed, etc.) for more operational flexibility. Slide valves are simpler, often preferred in commercial installations with separate waste plumbing, or where automation controls the backwash cycle directly without needing the additional multiport positions.
