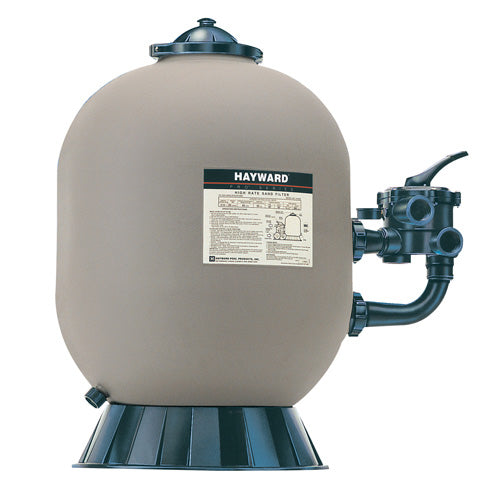

Hayward Pro Series 30" Side Mount Sand Filter without Valve
The Hayward Pro Series 30" Side Mount Sand Filter without Valve (S310S) is the tank-only version of the proven ProSeries side-mount sand filter — ideal for replacements where the existing VariFlo valve is being reused, or for new installations where the valve is specified separately. The ProSeries uses a precision-engineered umbrella-fold self-cleaning lateral system for efficient flow and totally balanced backwashing.
Built with a unitized corrosion-proof polymer tank, 360 slotted self-cleaning laterals, integral top diffuser, corrosion-proof base, flanged inspection/access cover, and integral molded drain plug. Rated for up to 50 PSI. Backed by a 1-year warranty.
Note: No valve included. Filter sand not included. Compatible Hayward VariFlo side-mount valve must be purchased separately.
Key Features
Tank Only — Reuse Existing Valve
Perfect for filter tank replacements when the existing VariFlo side-mount valve is in good condition and will be reused — no unnecessary valve purchase.
360 Slotted Self-Cleaning Laterals
Multilateral underdrain assembly with 360 slotted laterals provides totally balanced flow and backwashing for maximum filtration efficiency.
Integral Top Diffuser
Ensures even distribution of water over the top of the sand media bed for consistent filtration.
Umbrella-Fold Self-Cleaning Lateral System
Precision-engineered umbrella-fold design for efficient flow and evenly distributed water for balanced backwashing.
Corrosion-Proof Polymer Tank
Unitized, color-fast polymeric construction for dependable all-weather performance.
Integral Molded Drain Plug
Easy tank draining without loss of sand — no external drain fitting required.
Flanged Inspection/Access Cover
Durable flanged cover for convenient top-of-filter access during inspection or sand changes.
Manual Air Relief
Manual air relief valve for easy release of trapped air from the system.
Who It's For
- Pool professionals replacing a ProSeries S310 tank where the existing side-mount VariFlo valve is being reused
- New installations where the valve is specified separately and a tank-only purchase is preferred
- Commercial and residential installations requiring the ProSeries 30-inch side-mount platform
Specifications
Performance
| Filtration Area | 4.91 sq ft |
| Filter Type | Side-Mount Sand (No Valve) |
| Max Working Pressure | 50 PSI |
Tank
| Tank Diameter | 30 in |
| Lateral System | 360-Slot Umbrella-Fold Self-Cleaning |
| Base Material | Injection-Molded Polymer |
| Mounting | Side Mount |
| Side Clearance Required | 18 in |
| Vertical Clearance Required | 18 in |
Physical
| Product Weight | 83 lb |
| Shipping Dimensions | 32 × 32 × 48.3 in |
Approvals & Warranty
| Application | In-Ground Pool / Spa / Ponds (Residential & Commercial) |
| Warranty | 1 Year |
What's in the Box
- Hayward Pro Series S310S 30" Sand Filter Tank (No Valve)
- User Manual
Note: No valve included. Filter sand not included. A compatible Hayward VariFlo side-mount valve must be purchased separately.
Warranty
The Hayward Pro Series S310S comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
What valve does the S310S require?
The S310S uses a Hayward VariFlo side-mount multiport valve — typically a 2-inch side-mount model. Compatible valves are available separately. If you're replacing a tank and reusing an existing valve, confirm the valve model is compatible with the S310S before ordering.
Is this the same tank as the S310T2 (top-mount with valve)?
No. The S310S is a side-mount filter (valve mounts on the side of the tank); the S310T2 is a top-mount filter (valve mounts on top). The two use different valves and have different plumbing connection layouts. Make sure you order the correct type for your installation.
