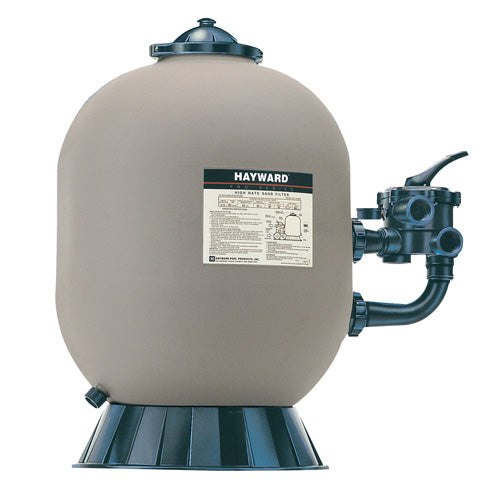

Hayward Pro Series 24" Side Mount Sand Filter without Valve
The Hayward Pro Series 24" Side Mount Sand Filter without Valve (S244SLV) is the tank-only version of the ProSeries 24-inch side-mount sand filter — ideal for replacements where the existing side-mount VariFlo valve is being reused, or for new installations where the valve is specified separately. The ProSeries umbrella-fold self-cleaning lateral system provides efficient flow and totally balanced backwashing for long-lasting performance.
Built with durable corrosion-proof materials, large pressure sand/water drain, injection-molded polymer base. Suitable for in-ground pools, spas, and ponds. Backed by a 1-year warranty.
Note: No valve included. Filter sand not included. A compatible Hayward VariFlo side-mount valve must be purchased separately.
Key Features
Tank Only — Reuse Existing Valve
Perfect for tank replacements when the existing side-mount VariFlo valve is in good condition and will be reused.
24" Compact Side-Mount Tank
3.14 sq ft filtration area — the smaller ProSeries side-mount tank for smaller pools where the 30-inch S310S is oversized.
Umbrella-Fold Self-Cleaning Laterals
Precision-engineered laterals for efficient, balanced flow and backwashing performance.
Corrosion-Proof Construction
Durable all-weather polymer construction.
Large Pressure Sand/Water Drain
Rapid winterizing or servicing drain.
1-Year Warranty
Hayward residential warranty.
Who It's For
- Pool professionals replacing a 24-inch ProSeries side-mount tank where the existing side-mount valve is being reused
- New installations where the valve is specified and purchased separately
- Smaller pools where the 24-inch tank is correctly sized
Specifications
Performance
| Filtration Area | 3.14 sq ft |
| Filter Type | Side-Mount Sand (No Valve) |
| Max Working Pressure | 50 PSI |
Tank
| Tank Diameter | 24 in |
| Lateral System | Umbrella-Fold Self-Cleaning |
| Base Material | Injection-Molded Polymer |
| Mounting | Side Mount |
| Side Clearance Required | 18 in |
| Vertical Clearance Required | 18 in |
Physical
| Product Weight | 56 lb |
| Shipping Dimensions | 24.6 × 24.6 × 44 in |
Approvals & Warranty
| Application | In-Ground Pool / Spa / Ponds |
| Warranty | 1 Year |
What's in the Box
- Hayward Pro Series S244SLV 24" Sand Filter Tank (No Valve)
- User Manual
Note: No valve included. Filter sand not included. A compatible Hayward VariFlo side-mount valve must be purchased separately.
Warranty
The Hayward Pro Series S244SLV comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
What is the difference between the S244SLV (no valve) and the S244S (with valve)?
The S244S includes a 1-1/2 inch VariFlo side-mount valve in the box — it's a complete system ready to plumb. The S244SLV is the tank only — no valve included. Choose the S244SLV when you're replacing just the tank and will reuse or separately purchase the valve, or when the valve is being specified independently.
What valve does the S244SLV require?
The S244SLV uses a Hayward VariFlo side-mount multiport valve — compatible 6-position VariFlo or 2-position slide valve options are available. Confirm valve compatibility with your pool professional before ordering.
