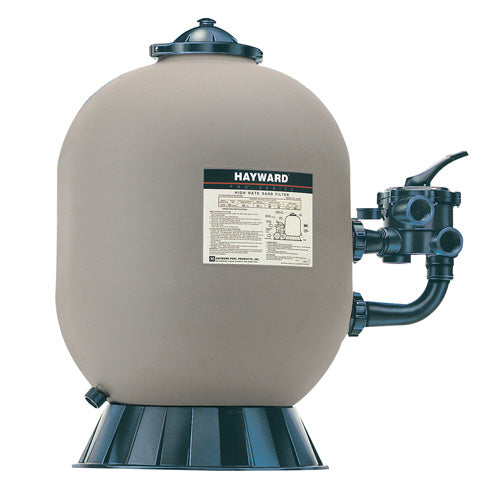

Hayward Pro Series 24" Side Mount Sand Filter with 1.5" VariFlo™ Control Valve
The Hayward Pro Series 24" Side Mount Sand Filter with 1.5" VariFlo™ Control Valve (S244S) is a complete sand filter system — compact 24-inch tank and 1-1/2 inch VariFlo control valve included. The ProSeries uses a precision-engineered umbrella-fold self-cleaning lateral system for efficient flow and evenly distributed water, delivering balanced backwashing and long-lasting performance.
Built with durable corrosion-proof materials, large pressure sand/water drain for rapid winterizing or servicing, and injection-molded polymer base. Suitable for in-ground pools, spas, ponds, and water features. Backed by a 1-year warranty.
Note: Filter sand is not included and must be sourced separately.
Key Features
1.5" VariFlo™ Valve Included
Complete system — 1-1/2 inch VariFlo multi-position side-mount control valve included in the box.
24" Compact Side-Mount Design
Smaller 24-inch tank for pools where the 30-inch S310T2 is oversized — 3.14 sq ft filtration area suited for smaller pools and spas.
Umbrella-Fold Self-Cleaning Laterals
Precision-engineered umbrella-fold laterals for efficient flow and balanced backwashing — long-lasting performance.
Corrosion-Proof Construction
Durable corrosion-proof materials for dependable all-weather performance.
Large Pressure Sand/Water Drain
Rapid winterizing or servicing with the combination drain port.
Versatile Application
Suitable for in-ground pools, spas, ponds, and water features.
Who It's For
- Residential pool, spa, and pond owners who want a compact complete side-mount sand filter system
- Smaller pools where a 24-inch tank is correctly sized
- Hayward system users wanting a brand-matched complete side-mount package with valve included
Specifications
Performance
| Filtration Area | 3.14 sq ft |
| Filter Type | Side-Mount Sand |
| Max Working Pressure | 50 PSI |
Valve
| Control Valve | 1-1/2 in VariFlo™ (Included) |
| Mounting | Side Mount |
Tank
| Tank Diameter | 24 in |
| Lateral System | Umbrella-Fold Self-Cleaning |
| Base Material | Injection-Molded Polymer |
| Side Clearance Required | 18 in |
| Vertical Clearance Required | 18 in |
Physical
| Product Weight | 62 lb |
| Shipping Dimensions | 24.6 × 24.6 × 44 in |
Approvals & Warranty
| Application | In-Ground Pool / Spa / Ponds / Water Features |
| Warranty | 1 Year |
What's in the Box
- Hayward Pro Series S244S 24" Sand Filter Tank
- 1-1/2" VariFlo™ Side-Mount Control Valve
- User Manual
Note: Filter sand is not included and must be purchased separately.
Warranty
The Hayward Pro Series S244S comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How does the S244S (24") compare to the S310T2 (30")?
Both are Hayward Pro Series complete sand filter systems with VariFlo valve included. The S244S is the smaller 24-inch side-mount model with 3.14 sq ft filtration area and a 1-1/2 inch valve — suited for smaller pools and spas. The S310T2 is the 30-inch top-mount model with 4.91 sq ft and a 2-inch valve, better for larger pools with higher flow rates.
Is filter sand included?
No. Filter sand must be sourced locally. Consult the owner's manual for the specific sand amount required for the S244S.
