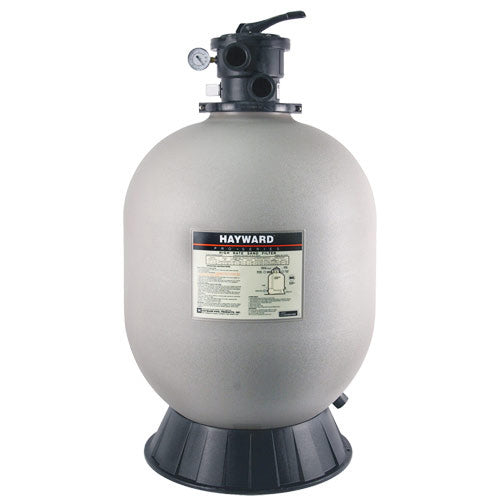

Hayward Pro Series 22" Top Mount Sand Filter with 2" VariFlo™ Control Valve
The Hayward Pro Series 22" Top Mount Sand Filter with 2" VariFlo™ Control Valve (S220T2) is the most compact complete ProSeries system — 22-inch tank, 2.64 sq ft filtration area, and 7-position VariFlo lever-action top-mount valve included. The ProSeries umbrella-fold self-cleaning lateral system provides efficient flow and totally balanced backwashing for long-lasting performance. At just 45 lb, this is the lightest and smallest complete ProSeries filter package.
Built with durable corrosion-proof materials, large pressure sand/water drain, injection-molded polymer base. Backed by a 1-year warranty.
Note: Filter sand is not included and must be sourced separately.
Key Features
7-Position 2" VariFlo™ Valve Included
Complete system — 7-position lever-action top-mount VariFlo valve included in the box. No separate valve purchase required.
22" Most Compact ProSeries Top-Mount
Smallest tank in the ProSeries top-mount lineup — 45 lb complete with valve for easy handling and installation.
Umbrella-Fold Self-Cleaning Laterals
Precision-engineered laterals for efficient, balanced flow and backwashing.
Corrosion-Proof Construction
Durable all-weather polymer construction for long-lasting outdoor performance.
Large Pressure Sand/Water Drain
Rapid winterizing or servicing drain.
1-Year Warranty
Hayward residential warranty.
Who It's For
- Smaller pools where the 22-inch tank is correctly sized
- Tight spaces where the most compact ProSeries top-mount design is required
- New installs and replacements wanting a complete top-mount system with Hayward VariFlo valve included
Specifications
Performance
| Filtration Area | 2.64 sq ft |
| Filter Type | Top-Mount Sand |
| Max Working Pressure | 50 PSI |
Valve
| Control Valve | 2 in VariFlo™ 7-Position, Lever-Action (Included) |
| Mounting | Top Mount |
Tank
| Tank Diameter | 22 in |
| Lateral System | Umbrella-Fold Self-Cleaning |
| Base Material | Injection-Molded Polymer |
| Side Clearance Required | 18 in |
| Vertical Clearance Required | 18 in |
Physical
| Product Weight | 45 lb |
| Shipping Dimensions | 22.4 × 22.4 × 42.6 in |
Approvals & Warranty
| Warranty | 1 Year |
What's in the Box
- Hayward Pro Series S220T2 22" Sand Filter Tank
- 2" VariFlo™ 7-Position Top-Mount Control Valve (Lever-Action)
- User Manual
Note: Filter sand is not included and must be purchased separately.
Warranty
The Hayward Pro Series S220T2 comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How does the S220T2 (22") compare to the S310T2 (30")?
Both are Hayward ProSeries top-mount sand filter systems with 2-inch VariFlo valve included. The S220T2 is the smaller 22-inch model with 2.64 sq ft of filtration area — suited for smaller pools. The S310T2 is the 30-inch model with 4.91 sq ft for larger pools. Both are complete systems with valve included and use the same umbrella-fold lateral design.
