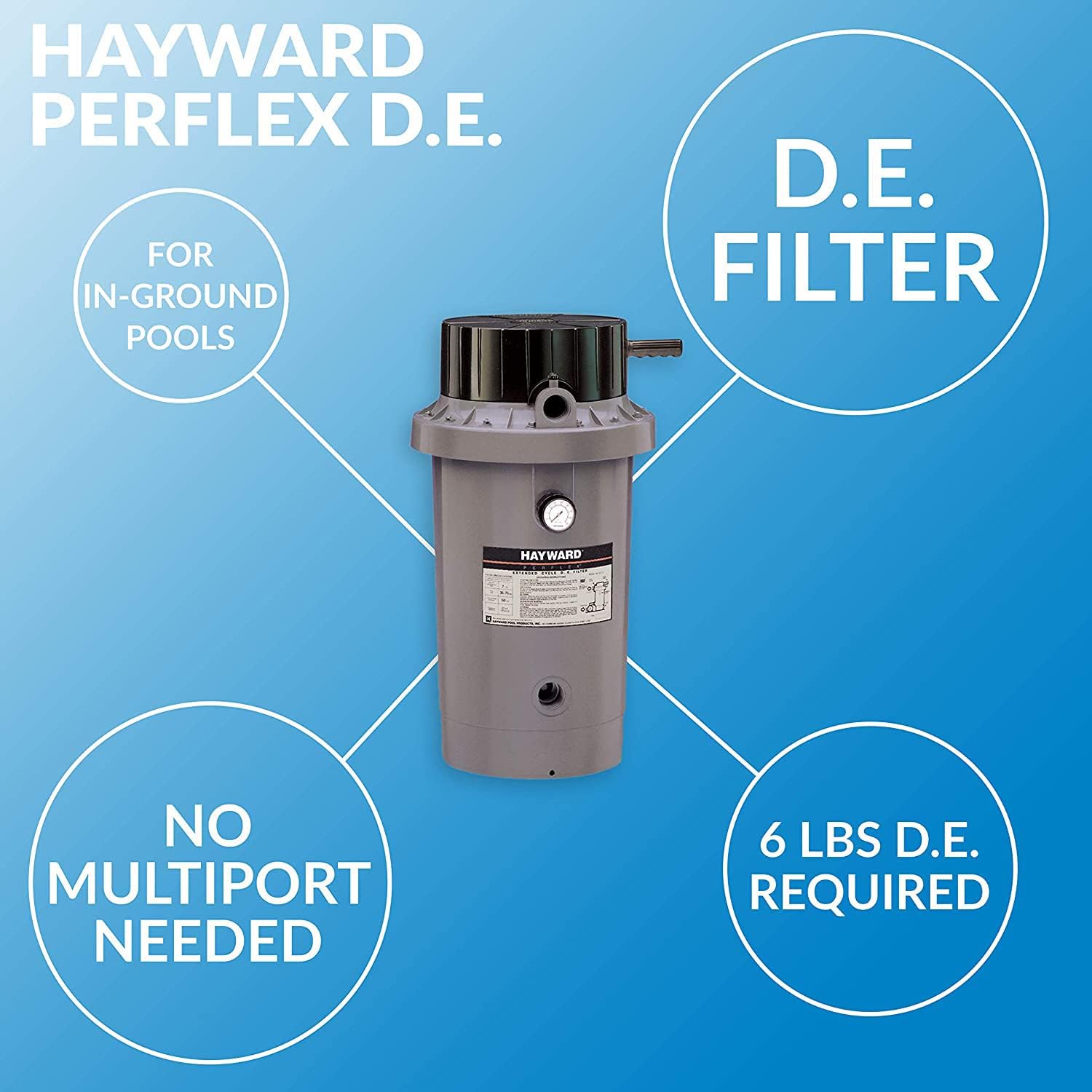

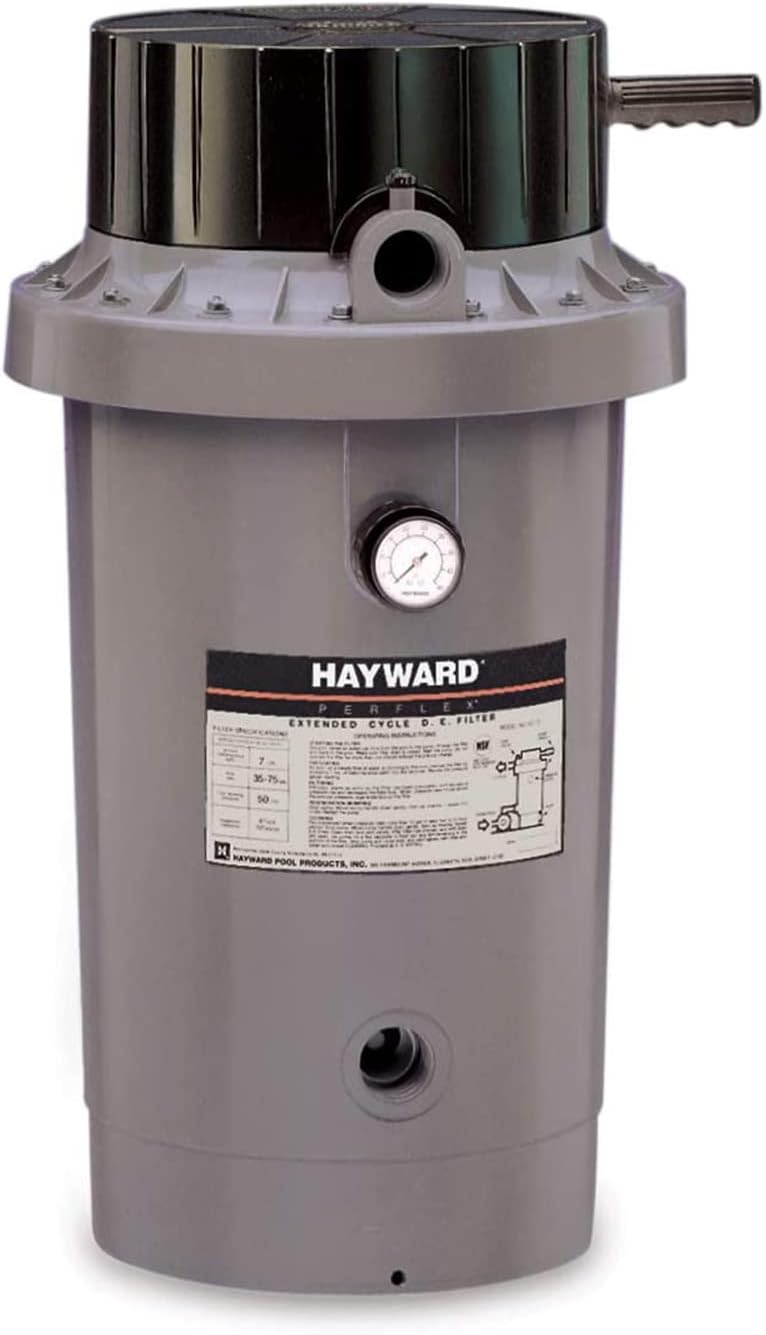

Hayward Perflex® 27 Sq Ft Modular D.E. Filter
The Hayward Perflex® 27 Sq Ft Modular D.E. Filter (W3EC65A) provides superior D.E. water clarity and extended filter cycles — without backwashing. The patented Flex-Tube™ system reuses D.E. media for extra-long cycles, and the bump handle cleans all 120 Flex-Tubes instantly when needed. Rated for 67 GPM. The compact entry model in the Perflex line. Backed by a 3-year warranty.

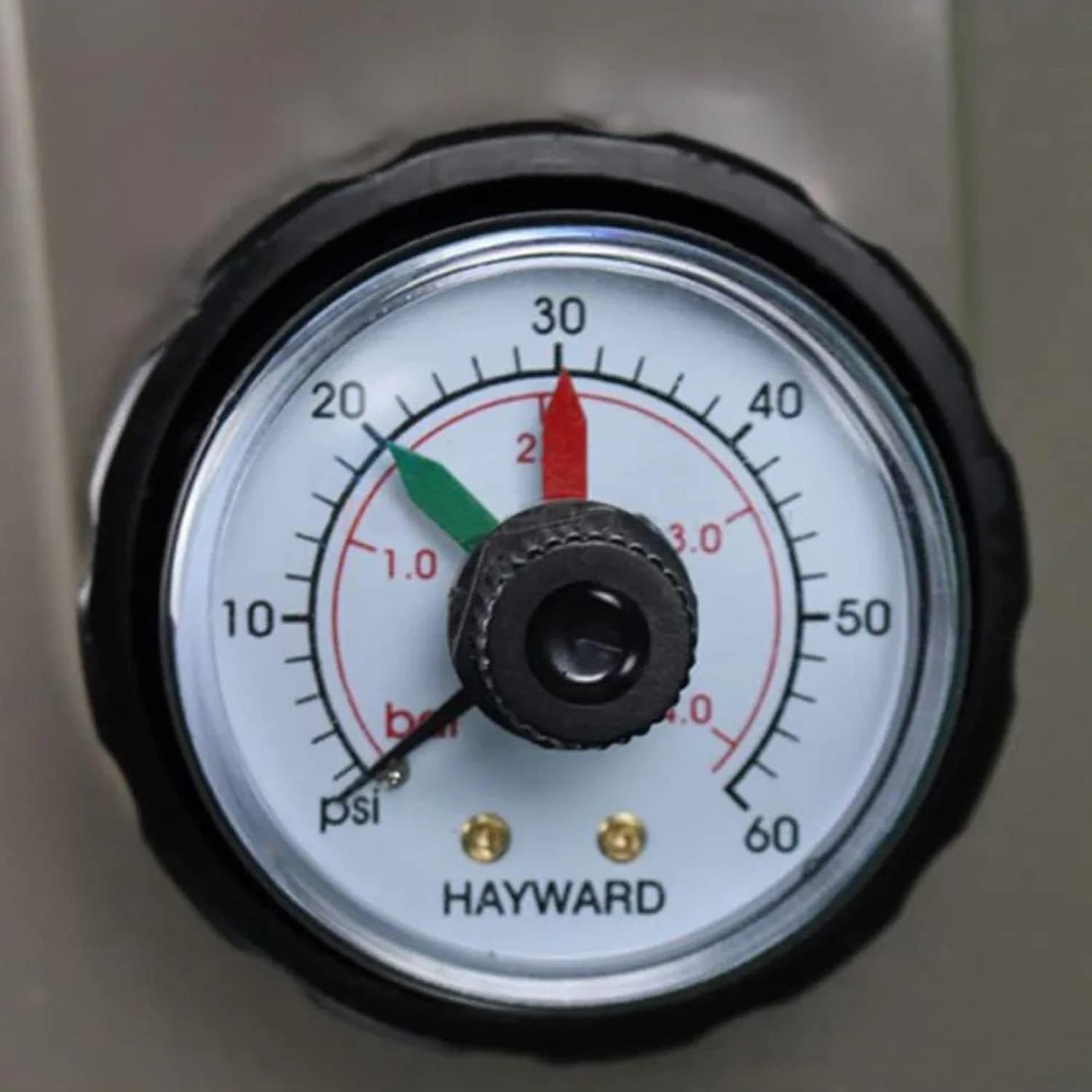

Heavy-duty injection-molded polymer tank, self-venting design, integral check valve, combination pressure gauge and service port, and engineered mixing chamber for uniform D.E. recoating.
Key Features
27 Sq Ft — No Backwashing

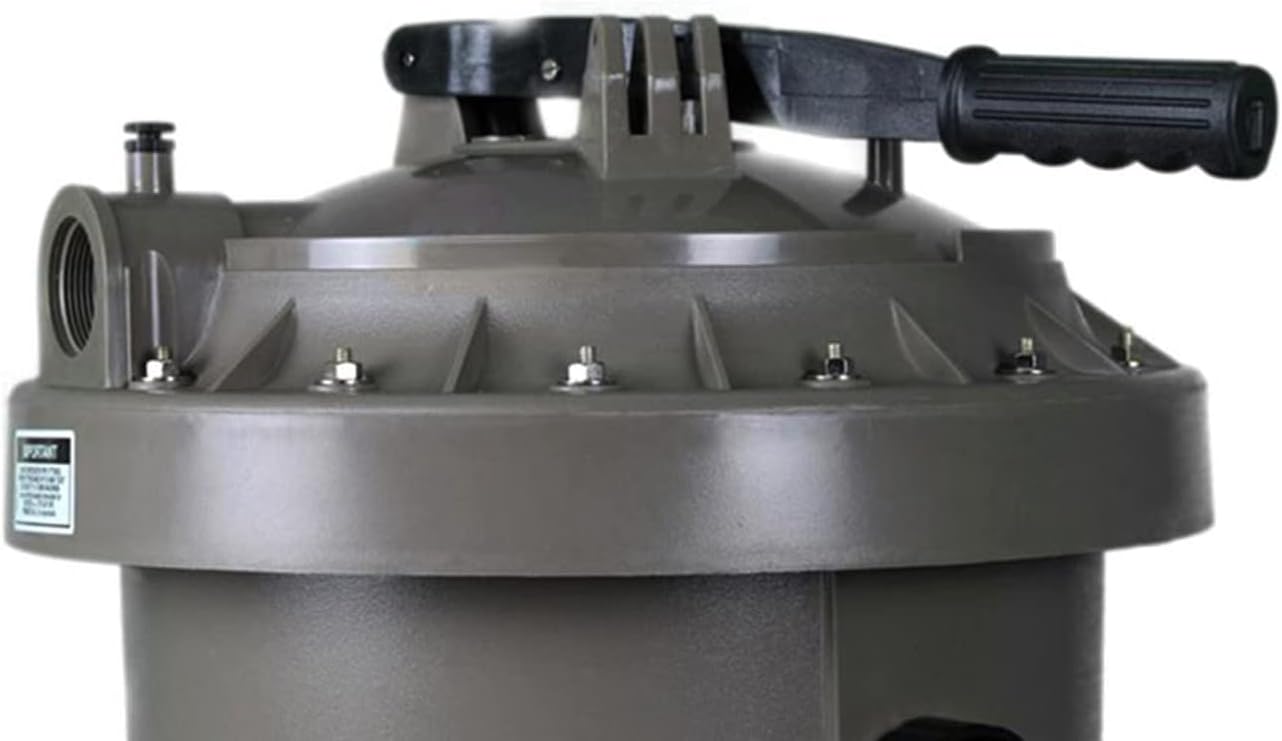

Extended-cycle D.E. filtration — bump the handle to clean all 120 Flex-Tubes and reform a fresh filtering surface instantly.
67 GPM / 3-Year Warranty
Compact entry Perflex model — correctly sized for smaller pools, with the same 3-year warranty as the larger W3EC75A.
Patented Flex-Tube™ Design
120 Dacron Flex-Tubes reuse D.E. and dirt mixture for extended filter cycles and lower D.E. consumption.
Self-Venting / Integral Check Valve
Automatically expels air and prevents backflow whenever the pump is off.
Specifications
| Filtration Area | 27 sq ft |
| Max Flow Rate | 67 GPM |
| Filter Elements | 120 Dacron Flex-Tubes |
| Filter Type | D.E. (Extended-Cycle, No Backwash) |
| Tank | Injection-Molded High-Strength Polymer |
| Product Weight | 45 lb |
| Shipping Dimensions | 19.4 × 17.4 × 31.9 in |
| Energy Efficient | Yes (Green Certified) |
| Warranty | 3 Years |
What's in the Box
- Hayward Perflex W3EC65A Filter with 120 Dacron Flex-Tubes
- Bump Handle Assembly
- User Manual
Note: D.E. powder is not included and must be purchased separately.
Warranty
The Hayward Perflex W3EC65A comes with a 3-year manufacturer warranty. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How does the W3EC65A (27 sq ft) compare to the W3EC75A (40 sq ft)?
Both are Perflex Extended-Cycle D.E. filters with the same bump-handle Flex-Tube design, 120 Dacron elements, and 3-year warranty in the same physical enclosure. The W3EC65A is rated for 67 GPM — suited for smaller pools. The W3EC75A handles 100 GPM for larger pools. Choose based on your pool volume and pump flow rate.
