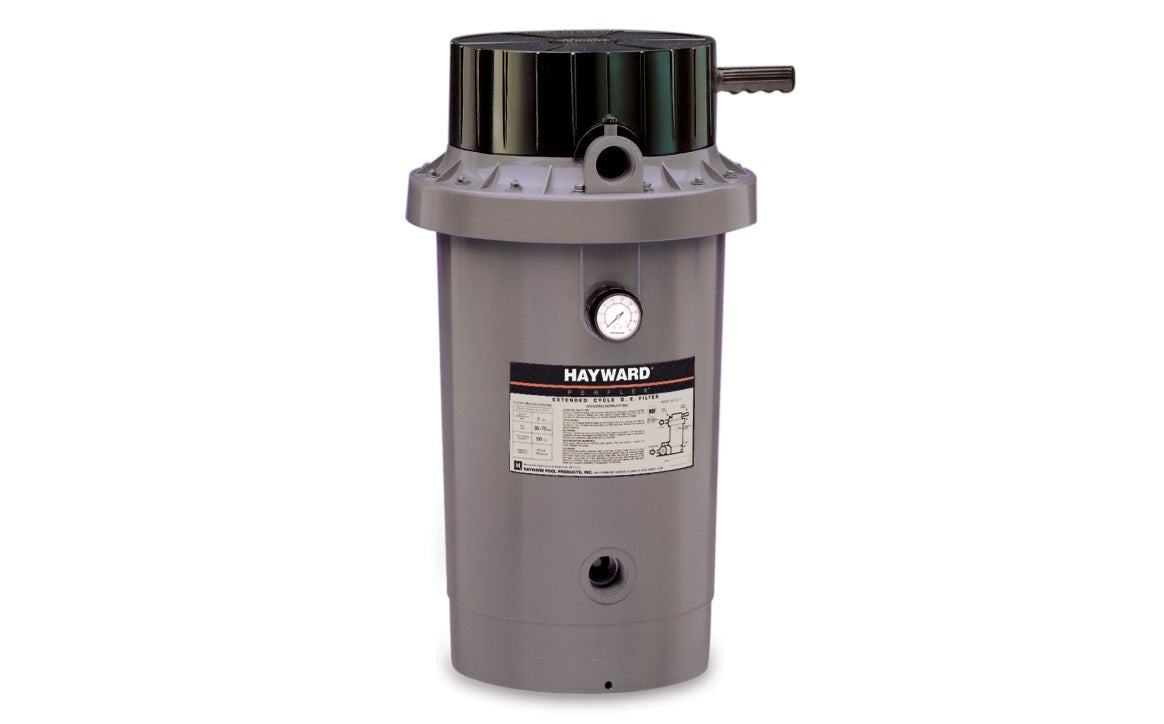

Hayward Perflex® 27 Sq Ft Modular D.E. Filter
The Hayward Perflex® 27 Sq Ft Modular D.E. Filter delivers crystal-clear, sparkling water through a uniquely efficient design — and unlike traditional D.E. filters, it requires no backwashing. The patented Flex-Tube™ design reuses the D.E. media and dirt mixture, extending filter cleaning cycles dramatically. Just "bump" the handle to instantly clean all 120 Flex-Tubes and form a fresh filtering surface.
Heavy-duty injection-molded polymer tank with self-venting design, integral check valve to prevent backflow, combination pressure gauge and service port, and a mixing chamber engineered for uniform D.E. recoating. Rated for 67 GPM. Green certified. Backed by a 2-year warranty.
Key Features
No Backwashing Required
Unique D.E. filter design eliminates backwashing entirely — saving water while maintaining D.E.-quality filtration.
Bump Handle Cleaning
Simply bump the handle to instantly and uniformly clean all 120 Flex-Tubes — forming a fresh D.E. filtering surface in seconds.
Patented Flex-Tube™ Design
120 Dacron Flex-Tubes efficiently reuse the D.E. and dirt mixture rather than discarding it — extended cycles between full cleanings.
D.E.-Level Water Clarity
Diatomaceous earth filtration media provides the finest filtration available — crystal-clear water at an economical price.
Self-Venting Design
Automatically expels air from the system as filtered water returns to the pool — no manual air relief needed.
Integral Check Valve
Automatically prevents system backflow whenever the pump is off — protects the filter and plumbing.
Mixing Chamber
Engineered for uniform, high-velocity mixing of D.E. and dirt for consistent recoating of Flex-Tubes after bumping.
Combination Pressure Gauge and Service Port
Easy-to-read pressure gauge with threaded inspection and service port for convenient maintenance access.
Heavy-Duty Injection-Molded Tank
High-strength polymer construction — dependable, corrosion-free performance.
Who It's For
- In-ground pool owners who want D.E. water clarity without the water waste of backwashing
- Anyone who wants the simplest possible D.E. maintenance — just bump the handle rather than full grid teardowns
- Pools in the smaller size range where 27 sq ft / 67 GPM is the right sizing
- Hayward system users who want the Perflex's proven extended-cycle design
Specifications
Performance
| Filtration Area | 27 sq ft |
| Max Flow Rate | 67 GPM |
| Filter Elements | 120 Dacron Flex-Tubes |
| Filter Type | D.E. (Extended-Cycle, No Backwash) |
Tank
| Tank Material | Injection-Molded High-Strength Polymer |
Physical
| Product Weight | 45 lb |
| Shipping Dimensions | 19.4 × 17.4 × 31.9 in |
Approvals & Warranty
| Application | In-Ground Pool |
| Energy Efficient | Yes (Green Certified) |
| Warranty | 2 Years |
What's in the Box
- Hayward Perflex EC65A Filter with 120 Dacron Flex-Tubes
- Bump Handle Assembly
- User Manual
Note: Diatomaceous earth (D.E. powder) is not included and must be purchased separately.
Warranty
The Hayward Perflex 27 sq ft D.E. Filter comes with a 2-year manufacturer warranty. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
What makes the Perflex different from a standard D.E. filter?
A traditional D.E. filter uses flat or curved grids that must be backwashed to clean — wasting water and D.E. — and periodically torn down for thorough cleaning. The Perflex uses 120 Dacron Flex-Tubes and a bump handle: bumping the handle causes the tubes to flex and shed the D.E./dirt cake, which then falls to a mixing chamber and recoats the tubes with a fresh filtering surface. No backwashing, no water waste, and less frequent full teardowns.
How often does the Perflex need to be bumped?
Bump the handle when the pressure gauge reads 8–10 PSI above the clean starting pressure. After bumping, the pressure should return to near the clean starting level. When bumping no longer restores pressure, it's time for a full cleaning — typically once or twice per season under normal conditions.
How much D.E. powder does this filter require?
The Perflex EC65A (27 sq ft) typically requires approximately 3 lb of D.E. powder at initial charge or after a full cleaning. Because the Perflex reuses D.E. rather than discharging it during bumping, D.E. consumption is lower than with backwashing filters.
