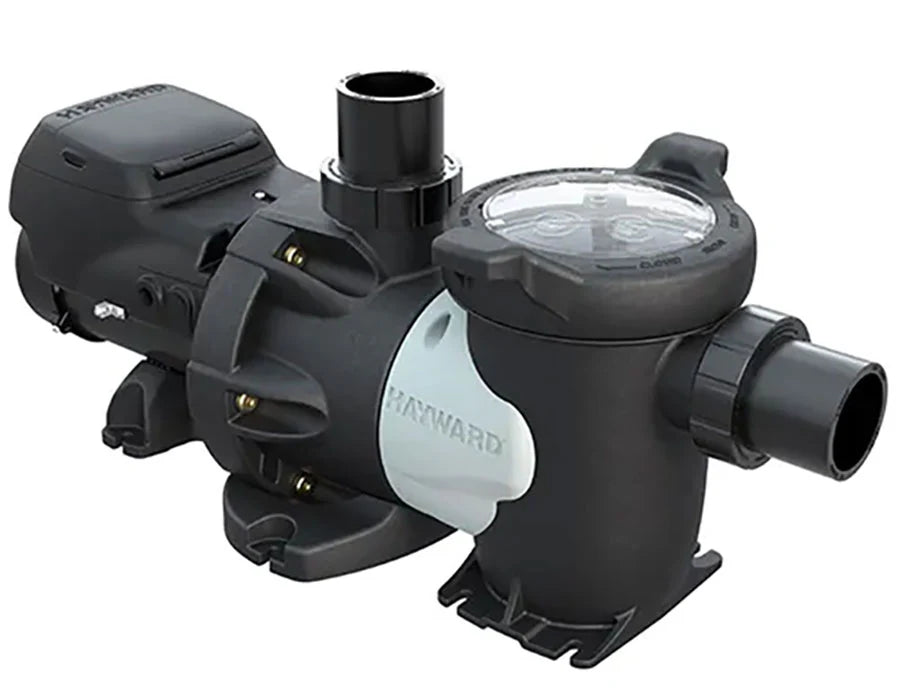

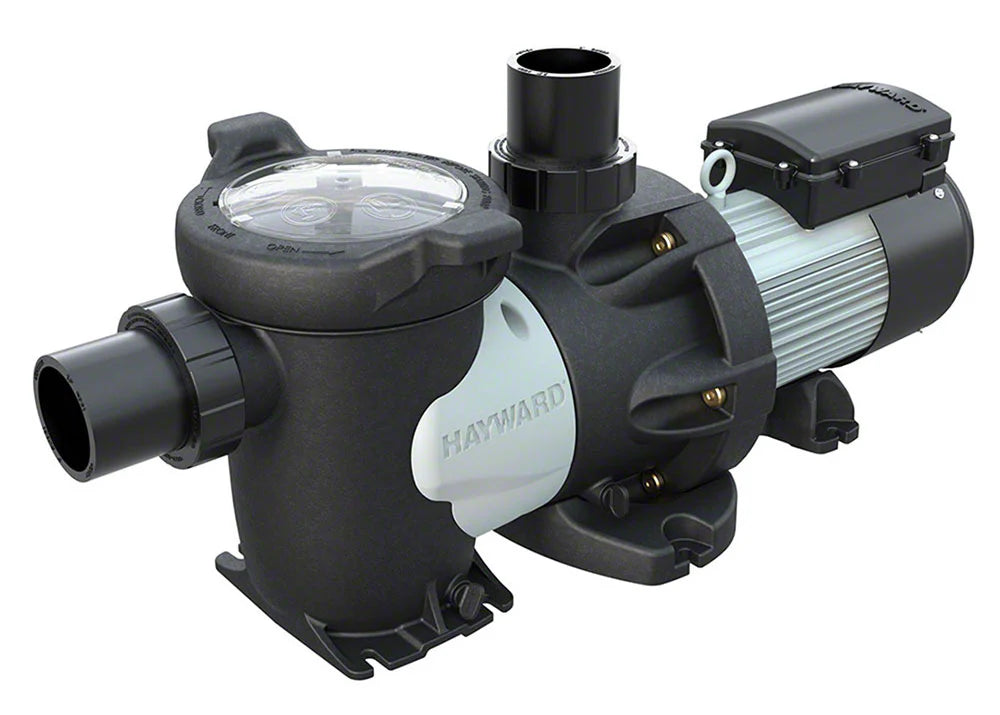

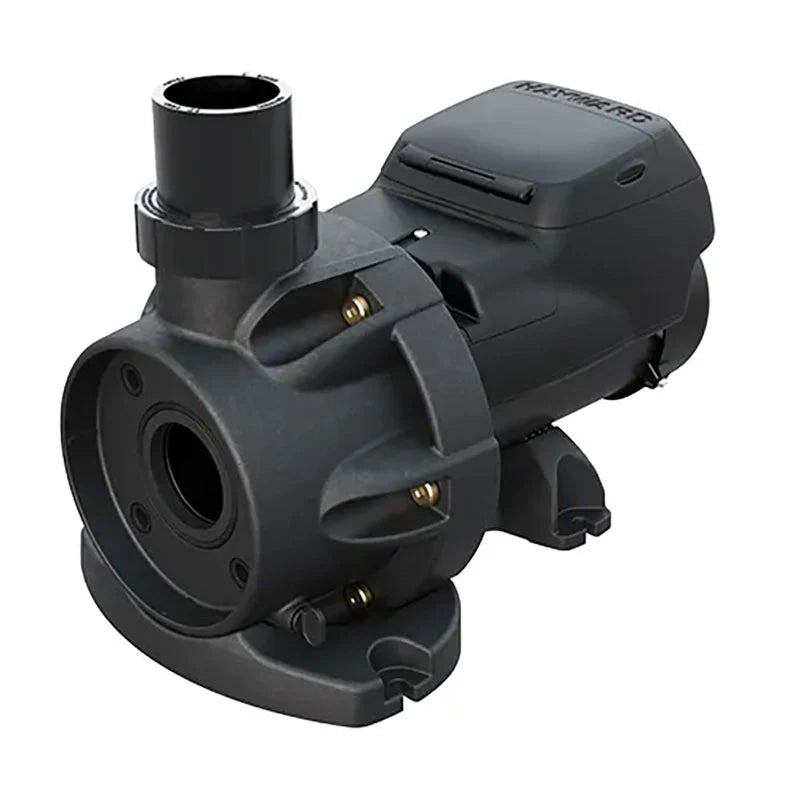

Hayward HCP 3000 Series Pump 5HP 208-230V
The Hayward HCP 3000 Series 5 HP Commercial Pump 208-230V Single-Phase (HCP30501) delivers unmatched performance and versatility in the 3-inch class. TEFC motor, chemical-resistant Viton® seal, 2.5"×3" union connections for drop-in replacement in almost any application. The oversized strainer basket reduces daily maintenance and the strainer housing can be remotely mounted for increased versatility. NSF/ANSI Standard 50 certified. Backed by a 1-year warranty.
Key Features
5 HP Single-Phase / 208-230V
High-capacity single-phase commercial pump in the 3-inch class — no 3-phase service required.
2.5" × 3" Union Connections
Drop-in replacement for almost any 3-inch class commercial pump application.
TEFC Motor / Viton® Seal
Totally Enclosed Fan-Cooled motor with chemical-resistant Viton seal for long-term durability and reliability.
Remote-Mountable Strainer Housing
Removable oversized strainer basket — strainer housing can be remotely mounted for complex equipment pad configurations.
NSF/ANSI Standard 50 Certified
Meets NSF/ANSI 50 requirements for commercial pool and spa equipment.
1-Year Warranty
Hayward commercial warranty.
Specifications
| Horsepower | 5 HP |
| Motor Speed | Single Speed |
| Motor Type | TEFC (Totally Enclosed Fan Cooled) |
| Phase | Single Phase |
| Voltage | 208V / 230V |
| Frequency | 60 Hz |
| Union Connections | 2.5 in × 3 in |
| Seal | Viton® Chemical-Resistant |
| Color | Black |
| Application | Pool / Spa / Fountains / All Purpose |
| Product Weight | 95 lb |
| Shipping Dimensions | 38.3 × 18.5 × 19.9 in |
| Certifications | NSF/ANSI Standard 50 Certified |
| Warranty | 1 Year |
What's in the Box
- Hayward HCP 3000 Series 5 HP Commercial Pump (HCP30501)
- User Manual
Warranty
The Hayward HCP30501 comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
