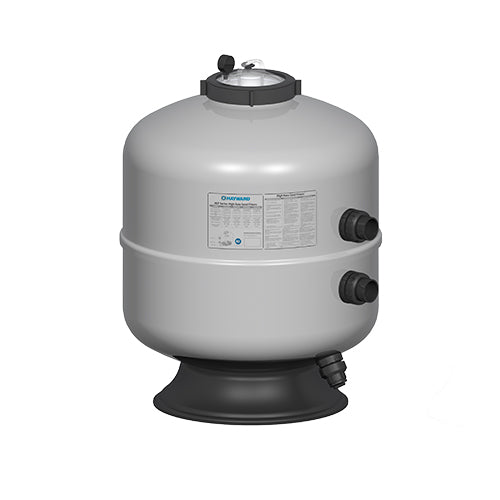

Hayward HCF Series 30" Commercial Fiberglass Sand Filter with 2" Bulkhead
The Hayward HCF230C 30" HCF Series Commercial Fiberglass Sand Filter with 2" Bulkhead sets a new standard for performance and longevity in the recreational water market. Designed to improve filtration and lengthen filter cycles, this commercial-grade filter is built from proprietary resins and fiberglass for virtually corrosion-proof performance — with a UV-protected gel coat that shields against the elements and prevents fiberglass blooming.
Multi-diffuser distribution heads and oversized commercial-grade PVC and polypropylene injection-molded laterals improve filtration and lengthen filter cycle time. Secure manway for easy inspection. 2-inch bulkhead connections, 4-inch side clearance, 600 lb sand required. Backed by a 5-year parts / 1-year labor warranty.
Note: Filter sand (600 lb) is not included. Backwash valve not included. Professional installation required.
Key Features
UV-Protected Gel Coat
UV-protected gel coat prevents fiberglass blooming and shields the filter against harsh outdoor elements — maintaining appearance and structural integrity.
Multi-Diffuser Distribution Heads + Oversized Laterals
Commercial-grade PVC and polypropylene injection-molded slotted laterals with multi-diffuser heads improve filtration uniformity and extend filter cycle time.
Virtually Corrosion-Proof
Proprietary resins and fiberglass construction — built for long commercial service life in demanding pool environments.
Secure Manway Mechanism
Easy access for internal inspection, maintenance, and sand changes without full disassembly.
2" Bulkhead Connections
Standard 2-inch bulkhead plumbing for commercial pool systems.
Minimal Side Clearance
Only 4 inches of side clearance required — maximizes equipment room utilization.
5-Year Parts / 1-Year Labor Warranty
Extended commercial warranty — 5 years on parts, 1 year on labor.
Who It's For
- Commercial aquatic facilities, hotels, and community pools requiring commercial-grade fiberglass sand filtration in a 30-inch tank
- Installations where 2-inch bulkhead plumbing and 4.9 sq ft filtration area is the right specification
- Pool operators who want the HCF Series' UV gel coat protection and extended 5-year parts warranty
Specifications
Performance
| Filtration Area | 4.9 sq ft |
| Max Working Pressure | 50 PSI |
Filter Media
| Sand Required | 600 lb (not included) |
Tank & Plumbing
| Tank Material | Fiberglass (UV-Protected Gel Coat) |
| Tank Diameter | 30 in |
| Connections | 2 in Bulkhead |
| Product Height | 42.6 in |
| Side Clearance Required | 4 in |
| Vertical Clearance Required | 18 in |
Physical
| Product Weight | 108 lb |
| Shipping Dimensions | 34 × 34 × 40 in |
Approvals & Warranty
| Parts Warranty | 5 Years |
| Labor Warranty | 1 Year |
What's in the Box
- Hayward HCF230C 30" Commercial Fiberglass Sand Filter Tank
- Multi-Diffuser Heads and Oversized Laterals
- User Manual
Note: Filter sand (600 lb) and backwash valve are not included. Professional installation required.
Warranty
The Hayward HCF230C comes with a 5-year parts warranty and 1-year labor warranty. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
How does the HCF230C (30") compare to the HCF342C (42")?
Both are Hayward HCF Series commercial fiberglass sand filters with UV gel coat protection, multi-diffuser laterals, and a 5-year parts / 1-year labor warranty. The HCF230C is the smaller 30-inch model with 4.9 sq ft of filtration area, 2-inch bulkhead connections, and 600 lb of sand required. The HCF342C is the larger 42-inch bobbin-wound model with 9.83 sq ft, 433 GPM capacity, and 1,400 lb of sand. Choose the HCF230C for smaller commercial installations; choose the HCF342C for high-volume applications.
What does UV-protected gel coat mean for the filter?
Fiberglass without proper UV protection can degrade over time — the glass fibers can "bloom" through the surface resin, degrading appearance and eventually structural integrity. The HCF Series' UV-protected gel coat forms a hard, protective outer layer that prevents fiber blooming and shields against sun, chemical exposure, and environmental weathering — extending the filter's service life in outdoor commercial installations.
