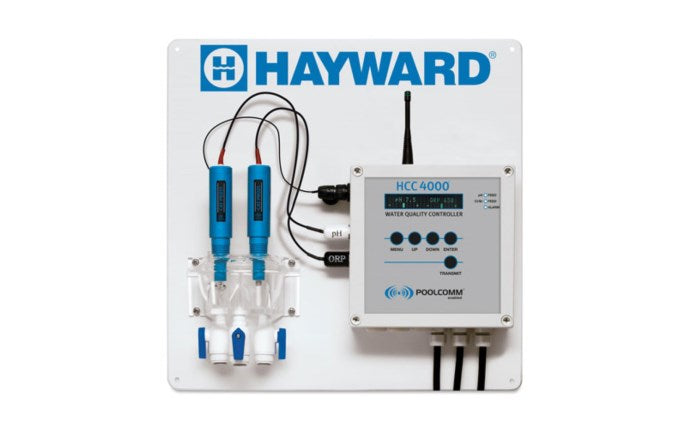

Hayward HCC 4000 pH/ORP WiFi Controller with Gold ORP Sensor
The Hayward HCC 4000 pH/ORP WiFi Controller with Gold ORP Sensor monitors pH and ORP while automatically making chemical feed decisions — and adds an upgraded gold ORP sensor, Hayward PoolComm app connectivity, internal 10-day chemical history logging, and an in-line strainer for enhanced sensor protection. Comes completely assembled with sensors included.
Like all HCC 4000 models, it calculates and displays derived free chlorine in PPM, features customizable chemical feed timing, and transmits unlimited chemical reading data wirelessly. The gold ORP sensor provides improved accuracy and longevity compared to standard sensors. Backed by a 1-year warranty on controller and sensors.
Key Features
Gold ORP Sensor
Upgraded gold ORP sensor for improved accuracy and longer service life compared to standard ORP sensors.
Hayward PoolComm App Integration
Transmits unlimited chemical reading data wirelessly to the Hayward PoolComm app for remote monitoring.
10-Day Chemical History
Internally stores and displays daily average chemical readings for up to 10 days — built-in compliance logging.
In-Line Strainer Included
In-line strainer provides additional sensor protection — extends sensor life in commercial applications.
Derived Free Chlorine in PPM
Calculates and displays derived free chlorine in PPM from ORP and pH readings.
Automatic pH and ORP Control
Continuously monitors and automatically makes chemical feed decisions to maintain safe water chemistry.
Customizable Feed Timing
User-configurable feed time and frequency for more consistent pH and sanitization levels.
Completely Assembled with Sensors
Comes fully assembled with pH and gold ORP sensors included — fast, easy installation.
1-Year Warranty on Controller and Sensors
Hayward limited warranty coverage for both controller and sensors.
Who It's For
- Commercial pool operators who need PoolComm app connectivity and 10-day chemical history for compliance logging
- Facilities where a gold ORP sensor is specified for improved longevity
- Anyone who wants the HCC 4000 WiFi with an in-line strainer and fully assembled sensor package
- Operators who need derived free chlorine PPM display and remote WiFi monitoring
Specifications
System
| Application | Commercial Pool |
| Connectivity | WiFi — Hayward PoolComm App |
| Measurements | pH, ORP, Derived Free Chlorine (PPM) |
| Data History | 10-Day Daily Average Log |
| ORP Sensor Type | Gold |
| Includes | pH Sensor, Gold ORP Sensor, In-Line Strainer |
Physical
| Product Weight | 15 lb |
| Shipping Dimensions | 18 × 18 × 7.5 in |
Approvals & Warranty
| Warranty | 1 Year (Controller & Sensors) |
What's in the Box
- Hayward HCC 4000 WiFi Controller with Gold ORP Sensor (Fully Assembled)
- pH Sensor
- Gold ORP Sensor
- In-Line Strainer
- User Manual
Warranty
The Hayward HCC 4000 WiFi with Gold ORP Sensor comes with a 1-year limited warranty on the controller and sensors. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
What is the difference between this (HCC4000WIFIAU) and the standard HCC 4000 WiFi (HCC4000WIFI)?
The HCC4000WIFIAU upgrades to a gold ORP sensor, adds Hayward PoolComm app connectivity (vs. generic WiFi data transmission), includes an in-line strainer, and stores 10-day chemical history internally. The standard HCC4000WIFI has the same basic WiFi and PPM display capabilities but without the gold sensor, strainer, or PoolComm app integration. Choose the AU version for the full commercial feature set.
Why is a gold ORP sensor better than a standard one?
Gold electrode ORP sensors are less susceptible to poisoning from common pool chemicals — particularly cyanuric acid and certain algaecides — that can coat and degrade standard platinum or silver electrodes over time. Gold sensors maintain accuracy longer in commercial pool environments with variable water chemistry, reducing calibration frequency and sensor replacement costs.
What is the Hayward PoolComm app?
PoolComm is Hayward's commercial pool monitoring app that receives WiFi data from the HCC 4000 controller. It allows facility managers to remotely monitor pH and ORP readings, view historical data, and receive alerts — useful for multi-pool facilities or off-site management.
What does the 10-day history log store?
The controller internally stores daily average chemical readings (pH, ORP, and derived free chlorine PPM) for the past 10 days. This built-in log can assist with regulatory compliance documentation for commercial pool operators without requiring a separate data management system.
