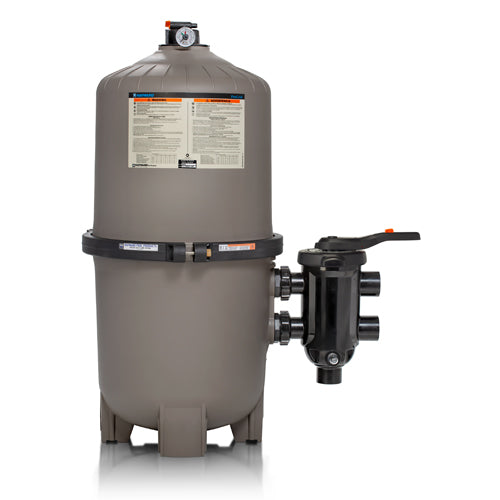

Hayward DEP500 Series 60 Sq Ft Pleated Element D.E. Filter

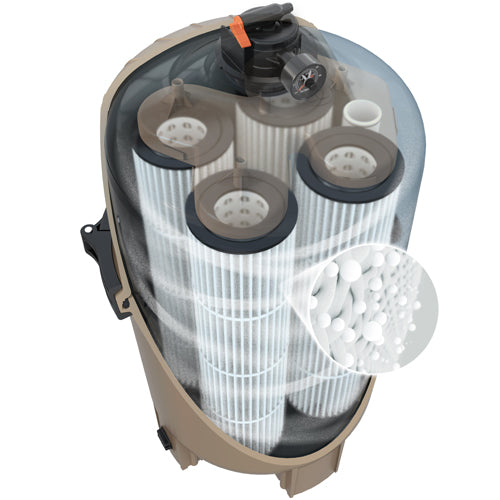

The Hayward DEP500 Series 60 Sq Ft Pleated Element D.E. Filter (DEP60) is Hayward's first pool filter engineered with cartridge convenience and D.E. technology — delivering superior water clarity with the simplest D.E. maintenance ever. The DEP500 Series uses pleated D.E. elements instead of traditional flat grids, with a reduced pleat count that significantly decreases cleaning time. Flow-rated equivalent to traditional grid D.E. filters, making it a direct retrofit replacement.
Heavy-duty one-piece tamper-proof clamp for quick access without disturbing plumbing, top manifold for maximum element utilization, manual air relief, and a "valve not required" design. Compatible with pumps up to 3 HP. Backed by a 1-year warranty.
Key Features
Cartridge Convenience + D.E. Clarity
Hayward's first filter combining cartridge-style ease of service with D.E. filtration — superior water clarity with simpler, faster maintenance.
Reduced Pleat Count — Faster Cleaning
Fewer pleats than standard cartridge filters means significantly less cleaning time per service cycle.
Greater Surface Area — Extended Service Intervals
Increased surface area extends time between servicing compared to traditional D.E. grids.
Direct Retrofit Replacement
Flow-rated equivalent to grid D.E. and multi-element cartridge filters — no replumbing required for retrofit installations.

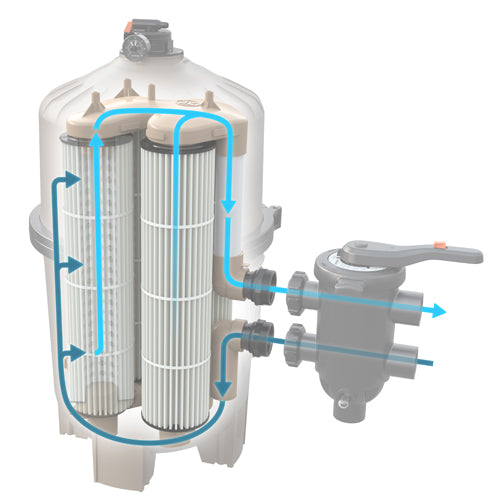

Top Manifold Design
Maximizes element utilization for increased filtration efficiency across the full 60 sq ft surface area.
One-Piece Tamper-Proof Clamp
Quick access to internal components without disturbing plumbing connections.
No Valve Required
Injection-molded polymer filter control — no separate backwash valve needed in the DEP500 design.
Up to 3 HP / 1-Year Warranty
Compatible with pumps up to 3 HP, Hayward residential warranty.
Who It's For
- Pool owners who want D.E. water clarity but find traditional D.E. grid maintenance too time-consuming
- Existing D.E. filter owners looking for a direct retrofit replacement with easier cleaning
- Anyone who wants the Hayward DEP500 approach — D.E. filtration with cartridge-style convenience
- Pools where 60 sq ft of D.E. capacity is the right size and simplified service is a priority
Specifications
Performance
| Filtration Area | 60 sq ft |
| Filter Type | Pleated Element D.E. |
| Max Pump Size | 3 HP |
Tank & Plumbing
| Tank Material | Thermoplastic |
| Filter Control Valve | Injection-Molded Polymer (No Separate Valve Required) |
| Side Clearance Required | 18 in |
| Vertical Clearance Required | 25 in |
Physical
| Product Weight | 66 lb |
| Shipping Dimensions | 23.1 × 24.6 × 35.7 in |
Approvals & Warranty
| Application | In-Ground Pool / Spa |
| Warranty | 1 Year |
What's in the Box
- Hayward DEP500 DEP60 Filter Tank with Pleated D.E. Elements
- One-Piece Tamper-Proof Clamp
- User Manual
Note: Diatomaceous earth (D.E. powder) is not included and must be purchased separately.
Warranty
The Hayward DEP60 comes with a 1-year manufacturer warranty. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
Frequently Asked Questions
How does the DEP500 differ from the Hayward ProGrid D.E. filter?
The ProGrid uses flat vertical grids that must be removed and cleaned individually during service. The DEP500 uses pleated elements — similar to cartridge filter construction — that have a reduced pleat count for faster cleaning and more surface area per element for extended cycles. The DEP500 is flow-rated equivalent to the ProGrid, making it a direct drop-in retrofit. Both deliver D.E.-level water clarity; the DEP500 prioritizes ease and speed of service.
How does the DEP60 compare to the Pentair Quad D.E.?
Both are D.E.-cartridge hybrid filters. The Pentair Quad D.E. uses four separate removable cartridge elements coated with D.E.; the Hayward DEP60 uses pleated elements with fewer pleats for fast cleaning. Both deliver D.E. water clarity with cartridge-style maintenance. Brand compatibility with existing Hayward plumbing may be the deciding factor.
Does the DEP60 require a backwash valve?
No. The DEP500 Series includes an integrated injection-molded polymer filter control — no separate backwash valve is required. Service is performed by opening the one-piece clamp to access and clean the pleated elements directly.
