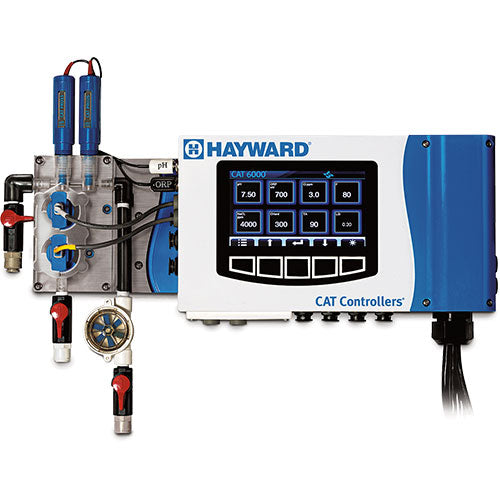

Hayward CAT 6000 Professional Package with Free Chlorine Sensor and Temperature
The Hayward CAT 6000 Professional Package with Free Chlorine Sensor and Temperature is Hayward's most advanced commercial water chemistry controller — built with solid-state sensing technology, a low-maintenance true free chlorine sensor, and Dynamic Sanitizer Control for effortlessly precise water chemistry you can trust. Its intuitive full-color 7" touchscreen makes every setting and function easy to access, while built-in WiFi and cellular connectivity keep you in full control from anywhere.
Factory assembled with mounting bracket and template for effortless installation. Comprehensive alarm and safety system covering free chlorine, pH, flow, pressure, tank level, and pump interlocks. Energy consumption monitoring for operational efficiency. NSF/ANSI Standard 50 certified. Backed by a 5-year controller warranty and 2-year sensor warranty.
Key Features

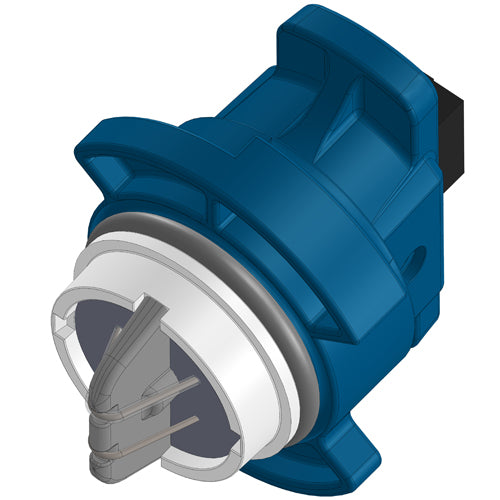

True Free Chlorine Sensor
Low-maintenance true free chlorine sensor measures actual free chlorine directly — not derived from ORP — for unmatched confidence in sanitizer readings.
Solid-State Sensing Technology
No moving parts in the sensing elements — solid-state technology delivers unmatched reliability and accuracy with minimal maintenance.
Dynamic Sanitizer Control
Fine-tunes water chemistry like never before — adaptive control responds to demand in real time.

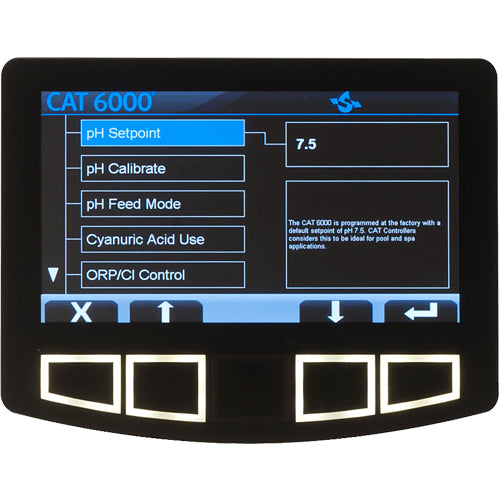

7" Full-Color Touchscreen
Intuitive color LCD with backlight and brightness control — the most operator-friendly interface in the CAT line.
Built-In WiFi and Cellular
Dual connectivity — WiFi for on-site network access plus cellular backup for remote access even without local network.
Energy Consumption Monitoring
Audit and monitor energy usage data to maximize operational efficiency.
Temperature Monitoring
Integrated temperature monitoring included in this Professional Package configuration.
Comprehensive Safety System
Sanitizer high/low alarms, pH alarms with interlock, flow alarms, filter pressure, suction pressure, tank level, vacuum pressure, pump activation interlock, and overfeed timeouts.
Factory Assembled with Mounting Hardware
Arrives factory assembled with mounting bracket and template — installation is effortless.
NSF/ANSI Standard 50 Certified
5-year controller warranty / 2-year sensor warranty.
Who It's For
- Commercial aquatic facilities that want the most accurate, lowest-maintenance water chemistry control available
- Operations where true free chlorine measurement (rather than ORP-derived) is required or preferred
- Facilities that need both WiFi and cellular connectivity for guaranteed remote access
- Operators who want energy monitoring, a full-color touchscreen, and comprehensive alarm coverage in a single system
Specifications
Control Parameters
| Sanitizer Measurement | True Free Chlorine (Direct) |
| Additional Parameters | pH, Temperature |
| Sensing Technology | Solid-State |
Display & Interface
| Display | 7" Color LCD with Backlight and Brightness Control |
| Interface | Full-Color Touchscreen |
Connectivity
| Wireless | Built-In WiFi + Cellular |
| Alarm Formats | Audio, Email, Internet, Visual |
Safety Systems
| Sanitizer Alarms | Low/High, Overfeed Timeout |
| pH Alarms | Low/High, Interlock, Priority Feed, Overfeed Timeout |
| System Alarms | Flow, Filter Pressure, Suction Pressure, Vacuum Pressure, Tank Level, Pump Activation Interlock |
Physical
| Product Weight | 17 lb |
| Shipping Dimensions | 23.5 × 18 × 8.5 in |
| Color | White / Blue |
Approvals & Warranty
| Application | Pool / Fountains (Commercial) |
| Certifications | NSF Certified, ANSI Standard 50 Certified |
| Controller Warranty | 5 Years (Limited) |
| Sensor Warranty | 2 Years |
What's in the Box
- Hayward CAT 6000 Controller (Factory Assembled)
- True Free Chlorine Sensor
- pH Sensor
- Temperature Sensor
- Mounting Bracket and Template
- User Manual
Warranty
The Hayward CAT 6000 Professional Package comes with a 5-year limited warranty on the controller and a 2-year warranty on sensors. Clearflow Pool Supply is an authorized Hayward dealer and will assist with any warranty service needed.
Downloads
Frequently Asked Questions
What makes a true free chlorine sensor different from ORP-based measurement?
ORP measures the oxidizing power of the water in millivolts — a high ORP indicates strong sanitizing capacity, but the actual chlorine PPM is inferred rather than measured directly. A true free chlorine sensor measures the actual concentration of free chlorine (hypochlorous acid) in the water directly, independent of pH or cyanuric acid levels that can distort ORP readings. This gives operators a more accurate, trustworthy chlorine reading particularly in pools with stabilizer.
What is solid-state sensing technology?
Solid-state sensors have no moving parts or liquid-filled reference junctions that can wear, clog, or drift over time. This translates to higher reliability, less frequent calibration, and lower maintenance costs compared to traditional glass electrode or conventional electrochemical sensors.
Does the cellular connectivity require a subscription?
Cellular connectivity may require a data plan or subscription — confirm current terms directly with Hayward. WiFi access to the remote monitoring platform is typically included at no additional cost.
How does the CAT 6000 compare to the CAT 5000 and CAT 5500?
The CAT 6000 represents a generational leap with true free chlorine measurement (rather than ORP), solid-state sensing technology, a full-color touchscreen, energy consumption monitoring, and integrated WiFi plus cellular. The CAT 5000 uses satellite/cellular/WiFi with pH and ORP; the CAT 5500 adds salt/TDS monitoring for salt chlorine pools. The CAT 6000 is the most accurate and lowest-maintenance of the lineup.
